Introduction

This page describes a prototype implementation of a "merged domain" in a collaboration context. The hosting organization defined a collaboration environment outside it's security boundary: the network exists outside the organizational firewall, and corporate machines (i.e., Windows machines joined to the internal active directory domain) are not allowed to plug into the collaboration network. The collaboration environment is distinct from the internal corporate environment to such a degree that active directory is only leveraged for user authentication and basic user attributes (sn, givenName, mail, telephoneNumber). This basic information about corporate users was merged with external users defined and managed by FreeIPA.

The merging occurred outside of FreeIPA using off-the-shelf tools. Merged identities were required to authenticate via LDAP simple bind (primarily for web applications) as well as Kerberos. Upstream user account entries in LDAP were remapped to a common DIT, specific user attributes were overridden, and the "umich_schema" was implemented to support cross realm NFS id mapping. Cross realm posix groups, composed of a mixture of FreeIPA and AD identities were implemented in this external directory. Common operations are being identified and are currently implemented via scripts which are manually run from the command line. A basic outline of the requirements, approach, and lessons learned is presented.

This work is envisioned to illustrate one potential application of "views" and serves as a use case for the work proposed in https://fedorahosted.org/freeipa/ticket/3979. This work describes a local linux domain loosely coupled with foreign domains, which act strictly as identity providers. Foreign identity providers must be able to authenticate users via Kerberos, but need not provide any descriptive user attributes. As such, the requirements for a bare Kerberos trust are well represented here.

Environment

Current situation: LDAP and Kerberos support

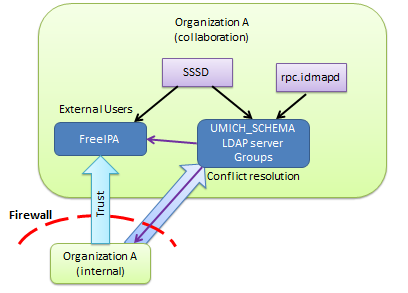

The following figure shows the environment in which this prototype was implemented. An organization has an internal network and a collaboration network separated by a firewall. Corporate identities are served by the corporate active directory server. External identities (for collaborators) are served by FreeIPA. In actuality, the organization in question is undergoing a phased migration from one active directory server (agency level) to another (department level, containing many agencies). Thus there are two upstream active directory servers feeding identities to the metadirectory server. This is a very specialized merging situation which creates duplicate user entries for every identity in the system.


The above diagram optimistically shows a one way "realm trust" (raw Kerberos trust) from AD to FreeIPA. This trust has not yet been granted. Without the trust, NFS and SSO functions will not work. Initial authentication using passwords will work without a trust (anyone can kinit), but sssd cannot verify identities by requesting that the KDC issue a host/fqdn@IPA_REALM ticket based on the received TGT. It is able to decrypt the client part of the ticket using the provided password, however.

This environment provides the ability to authenticate via ldap simple bind as well as kerberos. Linux machines can be joined to FreeIPA, and windows machines which call the collaboration network home (few and far between) are more or less standalone.

Eventually: Handle windows too

Windows machines calling the collaboration environment home may eventually be managed by a standalone domain controller. These windows machines do not have the corporate OS image loaded, and as of this moment, have no volume licensing agreement (i.e., windows machines on the collaboration network have neither the corporate OS image nor any bundled software.) A domain controller may be deployed to manage these machines, but it will bear no resemblance to the domain controller on the internal network.

Currently, the collaboration environment is dominated by Linux machines and Windows machines are few and far between.

Requirements

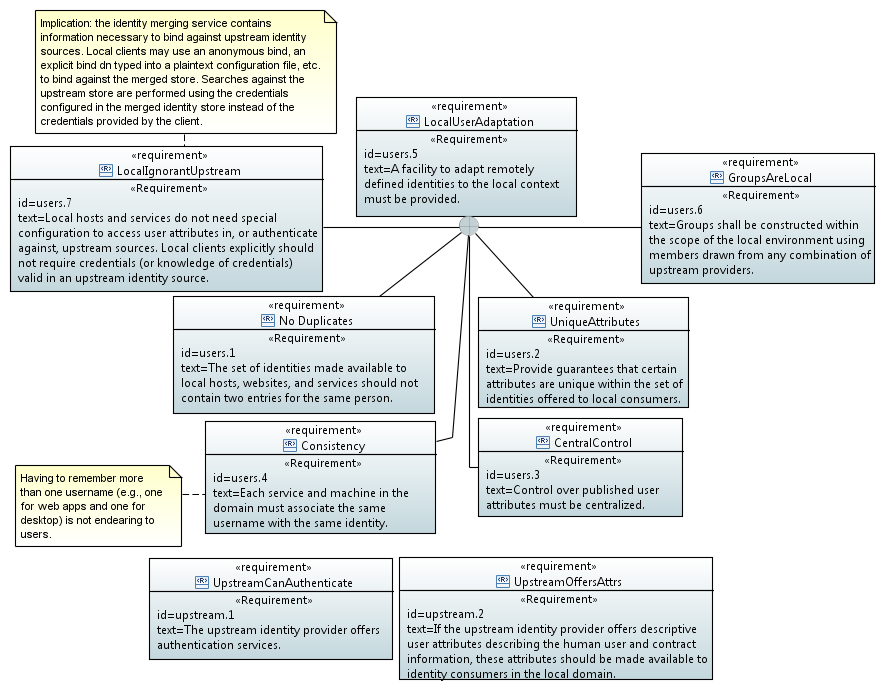

Requirements for upstream identity providers as well as for "identity processing" once the identities enter the local domain are presented in the following SysML requirements diagram.


Features of this arrangement include:

  • local control over locally published user attributes, leveraging upstream's descriptive and contact attributes where possible.
  • local management of collisions between attribute values which must be locally unique (uid, uidNumber, gidNumber)
  • clients in the local domain do not require credentials (or knowledge of credentials) in an upstream domain
  • centralized management of all identities accessible to local machines and services.
  • locally defined groups which may contain users from any combination of local and upstream identities
  • users declare their identity via the same username string to all hosts and services within the domain.
  • there is no dependance on any particular upstream user attribute, including a SID.

Implementation

Four logical functions

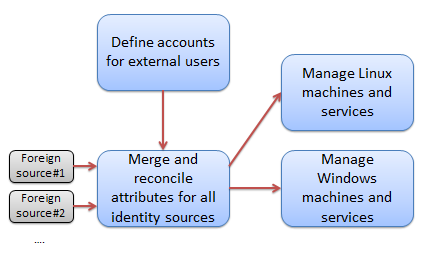

For the local domain to provide a consistent set of users to all services (Windows, Linux, web applications, etc.) a certain amount of manipulation is necessary. As shown below, the majority of users are defined in some external user store which can be used for authentication, but which cannot be assumed to contain any descriptive user attributes. The foreign identities and locally defined identities are merged together, and locally important attributes are synthesized if missing, overridden if conflicting, or passed thru if provided.


The end result of merging users is to provide central control over a set of flat local namespaces. Username is one of those namespaces. There must be a unique mapping from the username to an identity, and central control ensures that all web applications, services, and desktop logins respect the same mapping. The uidNumber and gidNumber attributes also refer to flat namespaces which must not have collisions. Finally, this setup provides central control over a many-to-one mapping from GSSAuthName to user identity (the idea being that your one local account can support many ways of logging into it: upstream active directory login, various OpenID providers, SAML, etc.) This is important for NFSv4 id mapping, and hence filesystem permissions.

Linux and Windows host management are defined as two separate logical functions because it is likely that they will require separate controllers targeted for each platform. Hosts, regardless of OS, consume the merged identities described above.

Merging and Reconciling

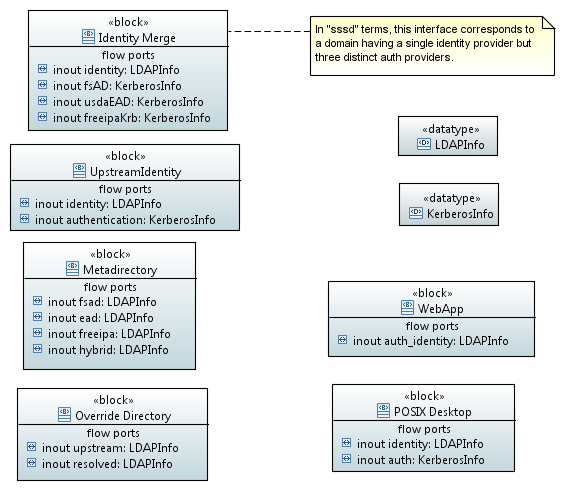

Of the four logical functions listed above, this prototype of views is intended to implement only the "Merge and Reconcile" function. The major players of this system are depicted in the following SysML block definition diagram. The components of the system traffic in two major types of information: LDAP info for identity attributes, and Kerberos info for authentication. In the case of some web applications, LDAP traffic is used for authentication as well.


At the present time, the two broad categories of relying parties are: web applications and POSIX desktops, in the lower right hand corner. The left hand column represents the components necessary to implement the merging and reconciling function. At the top of the left column is the top-level block, identity merge. It is composed of the metadirectory and override directory blocks, and it is connected to upstream identity sources.

Note that the metadirectory and override directory traffic only in LDAP info. These blocks serve only to proxy, remap/merge, and override attribute information and do not attempt to proxy Kerberos authentication traffic. This is why the enclosing "identity merge" block has a single identity port carrying attribute information over LDAP, but has three individual authentication ports carrying Kerberos traffic. These Kerberos ports just connect directly back to the KDC which owns the identity. As noted in the diagram, in sssd terms this corresponds to a single merged domain having a single identity provider and three distinct auth providers. Regardless of the details of implementation, this characteristic is likely to always crop up when attempting to create a coherent local view of multiple upstream domains.

Metadirectory block

The metadirectory block has been implemented by an instance of OpenLDAP configured with a single database of type "meta". This database proxies upstream and local identity sources, remapping them all onto a single DIT. It only remaps (and does not reconcile). For the upstream sources, only a handful of user attributes are proxied. The remainder are discarded. In particular, user attributes relevant to POSIX desktops are discarded. Even within my agency directory, these attributes have been inconsistently managed over the years. (Older accounts have some posix attributes, newer accounts do not.) After the transition to the department active directory, it is unlikely that any guarantees can be made regarding collisions between posix attributes created and managed by the 20 or so substantially autonomous agencies currently being gathered under one umbrella.

One salient fact to note: It is expressly not a requirement that corporate fileservers (within the firewall) be interoperable with clients or fileservers in the collaboration environment (outside the firewall). In fact, intentionally sabotaging such interoperability by redefining uidNumbers in the collaboration environment may actually be considered a security feature.

Existing posix attributes might as well not exist. There is no compelling reason to respect the existing assignments, particularly if new assignments can be automatically made. Hence, posix attributes are stripped out of corporate upstream identity sources by the metadirectory. All attributes from the FreeIPA server (and hence "external users") are proxied by the metadirectory server.

The metadirectory server produces a DIT which looks something like this:

  • ou=users,ou=remapped,dc=collaboration,dc=example,dc=org
    • ou=collaboration.example.org (served by freeipa, holding external users)
    • ou=agency_AD.example.org (there is an entire tree under here roughly reflecting the organizational structure of my agency)
    • ou=department_AD.example.org (currently proxying "ou=Agencies", of which my own agency is one)

This DIT structure allows for a single LDAP query with a base DN of ou=users,ou=remapped,dc=collaboration,dc=example,dc=org to find users regardless of which identity source contains them.

Override block

The override block is implemented by an OpenLDAP server having two "hdb" style databases. One database contains posix group definitions, with a suffix of ou=groups,ou=local,dc=collaboration,dc=example,dc=org. The other database is configured with a translucent overlay, and has an identical suffix as the above metadirectory: ou=users,ou=remapped,dc=collaboration,dc=example,dc=org. The translucent overlay is configured to proxy the OpenLDAP server implementing the Metadirectory block, described above. The database contains only those attributes which are added or overridden. All other user attributes are retrieved from the metadirectory server, which in turn retrieves them from the upstream sources.

The OpenLDAP server implementing the Override block is the server to which all hosts, services, and web applications in the domain should connect and query.

Evaluation

Meeting the requirements

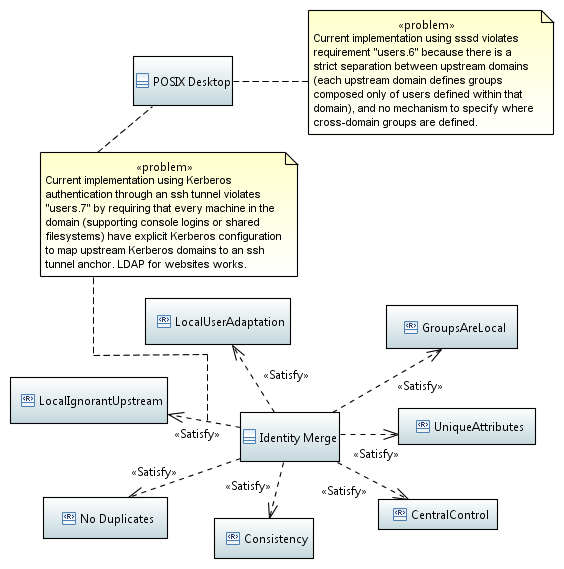

A basic evaluation of the prototype implementation in terms of the requirements is portrayed in the following SysML requirements diagram. By and large the system is functional. Of the two problems noted, only one requires an additional feature in a software product: sssd does not have a vocabulary to describe a merged domain (one identity provider and multiple auth providers). This more or less forces users to configure clients with one domain per auth provider, which prevents sssd from taking advantage of cross-realm groups.


Tasks, Scripts and Automation

Allocating posix attributes and assigning them to a user is one of the major functions of this system. The LDAP directories themselves provide a persistence and publication mechanism, but do not support performing such an allocation. FreeIPA creates and manages external users. It has been given a range of ID numbers to use. All other users not managed by FreeIPA are allocated uidNumbers from a different range. The process is manual, and is only triggered when someone requires access to a POSIX desktop (either via ssh, sftp, or because they need to mount an NFS share.) The algorithm is simple: start issuing uidNumbers at the minimum value of the range, incrementing the "next value to be assigned" by one with every assignment. Users who only require access to web applications are not allocated a uidNumber.

Renaming users is a critical function to manage a migration from one upstream identity source to another. All of the users will be duplicated, except for the fact that un-migrated users will fail to authenticate in the target directory but not the source, and vice-versa for migrated users. Simple LDAP queries cannot return more than one DN when querying for a user, because that may well confuse the vast majority of web applications. In my case, the offending copy of the users identity was renamed to "not-<username>".

Recommendations

  • Enhance the FreeIPA/sssd identity system such that it can present a self-consistent, merged and reconciled view of identities valid for use in the local domain. If FreeIPA is going to centralize the management of posix attributes assigned to foreign identities, sssd should know how to interpret them. Likewise, the correct Kerberos principal should be constructed and the correct Kerberos KDC should be contacted when initial authentication is necessary.
  • Enhance 389-ds with the rough equivalent of OpenLDAP's "meta" database and the translucent overlay. Make it possible to configure the metadirectory and the overlay directory in the same server.
  • Automate uidNumber allocation by monitoring ldap requests for the uidNumber attribute. (i.e., if the ldap request for a specific user succeeds in finding a DN for that user, but the uidNumber attribute is missing, then assign one, store it, and return it.) Guard against bulk assignment of uidNumbers which are probably unintentional (i.e., someone types getent passwd)
