V4/Performance Improvements

Name: V4/Performance Improvements
Tickets: #5448 , #3376 , #5281 , #5282 , #4995
Target version: 4.4.0
Author: Pvoborni
Incomplete.png Pending review
Last updated: 2016-07-26 by Mbasti

Contents

Overview

FreeIPA server has performance issue under certain circumstances. This design page covers the improvements(topics) which will be done in scope of 4.4 release. Each individual topic should have its own use cases, design, implementation and feature management section.

Slow user-add

Adding of higher number of users is slowing with the numbers of users added.

Related ticket(s): #5448, #5788, #5787 , 5916

Use Cases

  1. We have already a big number of users. With new year it is required to add couple thousands of users within a short period of time.
  2. We are migrating from old solution to FreeIPA and need to add more than 40K users.

Design

Adding user is part of the ongoing administration of a freeipa deployment. Few users can be added at a time but administrator may also provision many users within a short period of administrative period (typical a week end). Adding few users is usually done with CLIs like user-add, user-activate or user-undelete. The problem of performance with those CLI is that the CLI gets slower and slower as there are more users in the deployment. Addressing this slow down is the purpose of 5448.

On the other side administrator may want to fit into a given period, the provisioning of large number of users. This is an administrative task where it can be acceptable that during that period freeipa is not fully operational. Some controls can be skipped or updates (like group membership) can be postponed to the end of the provisioning. RFE should be created for these improvements.

Performance slow down of CLIs

There is slight difference between CLIs like user-add, user-activate or user-undelete but regarding the performance they are all doing similar phases:

  • authenticate
  • do some controls with several searches on LDAP
  • add a user entry and make it member of groups (by default ipausers group)
  • (optional: delete stage user or delete preserved user)

In Freeipa 4.2 for example, adding a single user can last around 3sec for the firsts users but if it already exist thousand of them it can last for example 10sec with 50K users like described in this update. In the rest of this paragraph, the base duration of ipa user-add is 10s and duration of individual ldap request are given in percentage of 10s.

Regarding the duration (10s) of a user-add CLI with 50K users the layout (initial durations) of the ldap operations given below. It shows that '~90%' of "user-add" duration is spent in 'DS':

Details:
kerberos authentication: 30%
ldap add:                28%  (sum 58%)
update group membership: 15%  (sum 73%)
ldap bind:               10%  (sum 83%)
user membership lookup:   8%  (sum 91%)
authenticate

Authentication is done on the LDAP server using the GSSAPI external mechanism and then being bound with the entry mapping the kerberos principal. GSSAPI Kerberos authentication is also using LDAP server so the complete authentication is looking like (note the delay between the connection open and the BIND:

Details:
[11/Jan/2016:14:35:24 +0100] conn=86 fd=107 slot=107 connection from xxx to yyy
...<kerberos authentication>
[11/Jan/2016:14:35:27 +0100] conn=86 op=0 BIND dn="" method=sasl version=3 mech=GSSAPI
[11/Jan/2016:14:35:27 +0100] conn=4 op=376 RESULT err=0 tag=101 nentries=1 etime=0.004000
[11/Jan/2016:14:35:27 +0100] conn=86 op=0 RESULT err=14 tag=97 nentries=0 etime=0.015000, SASL bind in progress
[11/Jan/2016:14:35:28 +0100] conn=86 op=1 BIND dn="" method=sasl version=3 mech=GSSAPI
[11/Jan/2016:14:35:28 +0100] conn=86 op=1 RESULT err=14 tag=97 nentries=0 etime=0.006000, SASL bind in progress
[11/Jan/2016:14:35:28 +0100] conn=86 op=2 BIND dn="" method=sasl version=3 mech=GSSAPI
[11/Jan/2016:14:35:28 +0100] conn=86 op=2 RESULT err=0 tag=97 nentries=0 etime=0.002000 dn="uid=admin,cn=users,cn=accounts,<suffix>"
.... <Set of SRCHs >
<ADD the user>
.... <Set of SRCHs >
<MOD(s) to add the users into the related groups>
.... <Set of SRCHs >
kerberos authentication cost

The reason of the duration (3s in above example) taken by kerberos authentication is that kerberos is doing several LDAP lookup and some of them are quite expensive:

Details:
[11/Jan/2016:14:35:24 +0100] conn=4 op=367 SRCH base="<suffix>" scope=2 filter="(&(|(objectClass=krbprincipalaux)(objectClass=krbprincipal)(objectClass=ipakrbprincipal))(|(ipaKrbPrincipalAlias=krbtgt/<realm>@<realm>)(krbPrincipalName=krbtgt/<realm>@<realm>)))"
[11/Jan/2016:14:35:24 +0100] conn=4 op=367 RESULT err=0 tag=101 nentries=1 etime=0.648000
...
[11/Jan/2016:14:35:24 +0100] conn=4 op=369 SRCH base="<suffix>" scope=2 filter="(&(|(objectClass=krbprincipalaux)(objectClass=krbprincipal)(objectClass=ipakrbprincipal))(|(ipaKrbPrincipalAlias=ldap/<hostname>.<domain>@<realm>)(krbPrincipalName=ldap/<hostname>.<domain>@<realm>)))"
[11/Jan/2016:14:35:25 +0100] conn=4 op=369 RESULT err=0 tag=101 nentries=1 etime=0.646000
...
[11/Jan/2016:14:35:25 +0100] conn=4 op=371 SRCH base="<suffix>" scope=2 filter="(&(|(objectClass=krbprincipalaux)(objectClass=krbprincipal))(krbPrincipalName=HTTP/<hostname>.<domain>@<realm>))"
[11/Jan/2016:14:35:26 +0100] conn=4 op=371 RESULT err=0 tag=101 nentries=1 etime=0.530000
...
[11/Jan/2016:14:35:26 +0100] conn=4 op=373 SRCH base="<suffix>" scope=2 filter="(&(objectClass=ipaKrb5DelegationACL)(memberPrincipal=HTTP/<hostname>.<domain>@<realm>))"
[11/Jan/2016:14:35:26 +0100] conn=4 op=373 RESULT err=0 tag=101 nentries=1 etime=0.424000
...
[11/Jan/2016:14:35:26 +0100] conn=4 op=374 SRCH base="<suffix>" scope=2 filter="(&(|(objectClass=krbprincipalaux)(objectClass=krbprincipal))(krbPrincipalName=admin@<realm>))"
[11/Jan/2016:14:35:27 +0100] conn=4 op=374 RESULT err=0 tag=101 nentries=1 etime=0.551000

The SRCH requests are costly because of the base search, each of them triggers an internal lookup in the schema compat plugin map. The more entries (users) are present in the map, the more expensive the lookup is. For example, the same searches without schema compat lookup are 35 times faster.

There are several possibilities to avoid this extra cost:

  • change the base search to that it does not cover the cn=compat,<suffix>. But krb principals are either in cn=kerberos and cn=accounts. Changing the the single search into two searches on each branch was too complex and this idea was dropped
  • Add a new ldap control supported by schema compat, so that a ldap client could request schema compat to avoid lookup into the map. Two tickets were opened for client and server side.
  • Kerberos is looking of real users, not for compat users. The idea is to make schema compat aware the request comes from kerberos application and so avoid lookup in the map. Kerberos access ldap server using ldapi interface and authenticate as cn=directory manager. A simple fix on schema compat plugin side, is to ignore any requests coming ldapi/root.


The solution implemented to address the kerberos authentication cost was fixing schema compat because it is an easy fix. 389-ds server, assuming that a local agent (ldapi interface) bound as root (like kerberos) is not interested by the schema compat mapped entries.

ldap bind cost

The ldap BIND itself is not expensive. In the above example, it lasts around 0.012s that is not significant (0.1%) regarding the complete user-add duration (take a base time of 10s). Looking at the top consumption of DS plugins, none of plugin involved in BIND op appears in top consumer.

For this reason we did not do specific improvement on LDAP BIND

Control and LDAP searches

Adding a freeipa user mainly consist in add user entry and update the group(s) the user entry belongs to. Before and after each of those two steps, there are several LDAP searchs like: reading the config (cn=ipaconfig,cn=etc,<suffix>), checking that the user does not already exist (active or preserved or private group), checking credential, and group membership.

The total number of searches is typically 25 but only one is expensive the search looking for group membership of the added user (see update).

Some optimization could likely be done on the 24 others. For example 13 out of the 24 are identical and are reading the config (cn=ipaconfig,cn=etc,<suffix>). The total of those search account for ~0.04s that is not significant (0.4% req duration) but would likely increase more response time because of the multiple requests to send/wait/decode. The caching of the ipaconfig has been fixed in 5463. With this fix, only one lookup of ipaconfig is done.

The request that is expensive is :

[05/Apr/2016:13:57:33 +0200] conn=75540 op=17 SRCH base="<suffix>" scope=2 filter="(|(member=uid=tb51420,cn=users,cn=accounts,<suffix>)(memberUser=uid=tb51420,cn=users,cn=accounts,<suffix>)(memberHost=uid=tb51420,cn=users,cn=accounts,<suffix>))" attrs=""
[05/Apr/2016:13:57:33 +0200] conn=75540 op=17 RESULT err=0 tag=101 nentries=0 etime=0.275000
Add user

The add of the user account is looking like

[05/Apr/2016:13:57:31 +0200] conn=75540 op=13 ADD dn="uid=tb51420,cn=users,cn=accounts,<suffix>"
[05/Apr/2016:13:57:33 +0200] conn=75540 op=13 RESULT err=0 tag=105 nentries=0 etime=1.850000

The ldap ADD accounts for nearly 20% of the total CLI. But 90% of the time spent in the ADD is spent in 6 lookup in schema compat map. Those lookup are internal searches done by DNA, uniqueness (krbPrincipalName, krbCanonicalName, ipaUniqueID, uid) and schema compat itself.

Details:
2 identical internal search done by 'DNA'
SRCH base="<suffix>" scope=2 filter="(&(|(objectClass=posixAccount)(objectClass=posixGroup)(objectClass=ipaIDobject))(|(uidNumber=1677038171)(gidNumber=1677038171)))" attrs="dn"

3 searches done by 'uniqueness'
SRCH base="<suffix>" scope=2 filter="(&(objectClass=posixAccount)(|(uid=tb38189)))" attrs="dn"
SRCH base="<suffix>" scope=2 filter="(|(ipaUniqueID=8549a6d6-a969-11e5-bfb1-001a4a231292))" attrs="dn"
SRCH base="<suffix>" scope=2 filter="(|(krbPrincipalName=tb38189@<realm>))" attrs="dn"

1 search done by 'schema compat'. note this one dumps ipausers group
SRCH base="cn=groups,cn=accounts,<suffix>" scope=1 filter="(member=uid=tb38189,cn=users,cn=accounts,<suffix>)" attrs=ALL

There are two options to reduce the impact of those internal searches:

  • modify DNA and uniqueness plugins configuration like described here. It does not fix the last internal search triggered by 'schema compat' itself. Those change improves the performance of LDAP ADD by 10.
  • Fixing schema compat plugin so that it does not trigger map lookup on internal operations. This fix has a large impact as it applies for any use case not only user-add. The gain is in the same range ADD drops from 2.7s to 0.3s (see update)

Because of the fix in schema compat being very simple (skip internal operation), major gain (even for other use case). This is the one that was implement.

Update of the group membership

When a user is added it is by default added to the group cn=ipausers,cn=groups,cn=accounts,<suffix>". This updates last around 15% of the duration of the CLI. Half of the duration of group update is spent in schema compat plugin handling internal operation. Those operations where triggered by others plugins:

  • memberof
  • mep
  • check-range
  • uuid
  • password-retry

Except for mep plugins, changing the plugin configuration in order to avoid schema compat divides by 2 the duration of the update of the group.

There are two options to reduce the impact of those internal searches:

  • modify the configuration of the above plugins like it is described here. Improvement for mep plugin can not be achieve that way. The gains is to divide by 2 the update
  • Fixing schema compat plugin so that it does not trigger map lookup on internal operations. This fix has a large impact as it applies for any use case not only MOD of groups. The gain is higher, MOD drops from 1.56s to 0.46s update

Because the fix in schema compat being very simple (skip internal operation), major gain (even for other use case). This is the one that was implemented.

broken SchemaCache

Due #5787 every IPA command call downloads the LDAP schema first without any caching. It took 40-60% of time of user-add command without groups.

Profiler output:
170386 function calls (170213 primitive calls) in 0.680 seconds
Ordered by: cumulative time

ncalls  tottime  percall  cumtime  percall filename:lineno(function)
...
206    0.000    0.000    0.470    0.002 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:731(_get_schema)
  1    0.000    0.000    0.470    0.470 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:113(get_schema)
  1    0.000    0.000    0.470    0.470 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:140(_retrieve_schema_from_server)
 32    0.000    0.000    0.364    0.011 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:87(_ldap_call)
...

This performance issue will be resolved by fixing #5787.

option --noprivate is not efficient

Related ticket(s): #5788

With option --noprivate postcallback of user_add command executes user-mod command for simple value change. This is ineffective and internal ldap mod call should be executed.

CLI framework

The following implementation drop the CLI duration from 10s to 3s. However, looking at the time spent in those 3s, it appears that remaining ldap requests are only accounting for 0.5s, so it remains more than 2s spent in CLI framework. The following ticket 5916 is to track this remaining part

Implementation

User-add CLI

The improvement described in Control and LDAP searches was implemented since 4.3.4 with the ticket 5463 and commit

Directory Server

The improvement seen in authenticate was implemented in slapi-nis plugin.

The improvements seen in ldap ADD and MOD were implemented in slapi-nis plugin slapi-nis: process requests only when initialization completed. Actually the subject of the commit does not reflect those changes in that file, where the perf improvement are

+	if (slapi_op_internal(pb) || (slapi_is_ldapi_conn(pb) && isroot)) {
+		/* The plugin should not engage in internal searches of other
+		 * plugins or ldapi+cn=DM */
+		return 0;
+	}

Those improvements are available since Release 0.55

Feature Management

UI

CLI

Slow user-find

High number of users stored in LDAP causes slowdown of the IPA command.

Related ticket(s): #5281, #5282, #3376, #4995

Use Cases

  1. Increase the usability of user-find command because with many users searches in LDAP take too long and may result into timeout.

Design

Don't do extra search for ipasshpubkey attribute

Related ticket(s): #3376, #5281

ipasshpubkey can be fetched together with user entry, there is no need for an extra search operation.

User-find with 2000 entries with sshpubkey
6310241 function calls (6200125 primitive calls) in 16.453 seconds

   Ordered by: cumulative time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
....
        1    0.027    0.027   16.449   16.449 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:2015(execute)
     6002    0.256    0.000   12.501    0.002 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:1272(find_entries)
        1    0.008    0.008    9.519    9.519 /usr/lib/python2.7/site-packages/ipalib/plugins/user.py:801(post_callback)
        1    0.041    0.041    9.392    9.392 /usr/lib/python2.7/site-packages/ipalib/plugins/baseuser.py:618(post_common_callback)
    16009    0.120    0.000    6.697    0.000 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:87(_ldap_call)
    10006    0.024    0.000    6.348    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:472(result3)
    10006    0.057    0.000    6.324    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:480(result4)
    10006    6.114    0.001    6.114    0.001 {built-in method result4}
     2000    0.053    0.000    5.341    0.003 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:733(get_password_attributes)
        1    0.000    0.000    4.283    4.283 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:1145(wrapped)
     2000    0.043    0.000    3.787    0.002 /usr/lib/python2.7/site-packages/ipalib/util.py:293(convert_sshpubkey_post)
    10004    0.095    0.000    3.147    0.000 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:895(_convert_result)
.....

As profiling output shows approximately 23% of time was spent on processing ipasshpubkey attribute because for each user it was downloaded separately

ldap access log contains

[15/Apr/2016:12:59:11 +0200] conn=30 op=5624 SRCH base="uid=user1871,cn=users,cn=accounts,dc=example,dc=com" scope=0 filter="(objectClass=*)" attrs="ipaSshPubKey"
[15/Apr/2016:12:59:11 +0200] conn=30 op=5624 RESULT err=0 tag=101 nentries=1 etime=0

for each user (2000 times for this case)

Fetching ipsshpubkey together with all attributes in one search will increase speed rapidly.

Remove userPassword, krbPrincipalKey attributes from search results

Related ticket(s): #5281

userPassword and krbPrincipalKey attributes require extra search. These attribute should be removed from user-find command to get better performance.

user-find with 2000 users:
6310241 function calls (6200125 primitive calls) in 16.453 seconds

   Ordered by: cumulative time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
....
        1    0.027    0.027   16.449   16.449 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:2015(execute)
     6002    0.256    0.000   12.501    0.002 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:1272(find_entries)
        1    0.008    0.008    9.519    9.519 /usr/lib/python2.7/site-packages/ipalib/plugins/user.py:801(post_callback)
        1    0.041    0.041    9.392    9.392 /usr/lib/python2.7/site-packages/ipalib/plugins/baseuser.py:618(post_common_callback)
    16009    0.120    0.000    6.697    0.000 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:87(_ldap_call)
    10006    0.024    0.000    6.348    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:472(result3)
    10006    0.057    0.000    6.324    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:480(result4)
    10006    6.114    0.001    6.114    0.001 {built-in method result4}
     2000    0.053    0.000    5.341    0.003 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:733(get_password_attributes)
        1    0.000    0.000    4.283    4.283 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:1145(wrapped)
....

Getting and processing password attributes took approximately 32% of time.

The ldap access log contains

[15/Apr/2016:12:59:12 +0200] conn=30 op=5764 SRCH base="uid=user1918,cn=users,cn=accounts,dc=example,dc=com" scope=0 filter="(krbPrincipalKey=*)" attrs="krbPrincipalKey"
[15/Apr/2016:12:59:12 +0200] conn=30 op=5764 RESULT err=0 tag=101 nentries=0 etime=0

for each user (2000 times for this case)

Note: this change causes that the output of user-find is not backward compatible.

processing members

user-find does not process members (groups, roles, sudorules, hbacrules, ...) by default.

However with option --all

$ ipa user-find --all
ipa: ERROR: cannot connect to 'https://ipa.example.com/ipa/json': Gateway Timeout

This testcase contains 2000 users with 110 direct and indirect memberships.

Fro more details please read *-find section

Implementation

Feature Management

UI

WebUI is not affected, because it uses user-show heavily instead of user-find. From user find it requires only list of primary keys.

user-find --pkey-only with 2000 users

708478 function calls (694369 primitive calls) in 1.889 seconds

CLI

Configuration

N/A

Upgrade

N/A


Slow host-find

High number of hosts stored in LDAP causes slowdown of the IPA command.

Issue here are similar to user-find issues.

Use Cases

  1. Increase the usability of host-find command because with many host searches in LDAP take too long and may result into timeout.

Design

Don't do extra search for ipasshpubkey attribute

See user-find

Remove userPassword, krbPrincipalKey attributes from search results

See user-find

processing members

$ ipa host-find
ipa: ERROR: cannot connect to 'https://ipa.example.com/ipa/json': Gateway Timeout

This testcase contains 2000 hostss with 110 direct and indirect memberships.

For more details please read *-find section

Implementation

Feature Management

UI

CLI

Configuration

N/A

Upgrade

N/A


Improvements of other commands

Side effects/benefits from user commands related changes to other IPA commands

typical provisioning: ldapadd entries, migrate-ds...

Use case

  • We are migrating (see this RFE) from old solution to FreeIPA and need to add entries (users/groups/hosts/rules...) withing a short period of time


Freeipa LDAP entries are typically:

  • read from a source instance into a ldif format
  • entries are possibly modified according to business/admin requirements (for example during migration scenario)
  • added/imported into a target instance

This chapter is related to the performance problem that can occur during add/import

A provisioning tool create-test-data.py is used to create a ldif file to import. Such tool/file can be used to identify bottleneck and possible performance improvement and later used to detect performance regression.

The entries are added synchronously and in sequence:

  • users
  • hosts
  • user groups (nested)
  • host groups (nested)
  • sudo rules
  • hbac rules

The specification of the data are:

  • users - default 50K - each user is member of 10 user groups
  • hosts - default 40K - each host is member of 5 hostgroups
  • user group - default 1K - each group contains 1000 users
  • host group - default 1K - each group contains 400 hosts
  • sudo rule - default 200
  • hbac rules - default 200
  • each user will be direct member of random 5 unique hbac rules and 5 unique sudo rules
  • create a structure of nested groups and add users to these groups so that users will be indirect member of more than 50 hbac rules and 50 sudo rulesthe same with host and hostgroups
  • so we can achieve results of user and host entries being direct and indirect member of more than 100 groups/sudo rules/hbac rules


Related opened tickets

  • 5861: failing internal MOD when adding empty host group
  • 5802: perf: adding a group with 1000 users/hosts lasts long (up to 12s)
  • 48812: exclude backends from plugin operation
  • 5914: invalid setting of DS lock table size
  • 48856: Memberof plugins compute 'memberof' using internal searches that can be costly
  • 48861: Memberof plugins can update several times the same entry to set the same values
  • 48868: Checking of cache tuning is too strict and make DS unusable
  • 48812: Exclude Backends From Plugin Operations

Provisioning throughput and DS tuning

Entry cache tuning

The following table shows the duration of import depending of the entry cache size (domain). Tests have been done with different size (10Mb, 50Mb, 100Mb) of db cache, it had almost no impact on the duration.

The import was done with memberof: enabled. (slapi-nis and retroCL disabled).

Cache size 10Mb 100Mb 200Mb
Duration 4h00 2h30 1h40
Entries cached 4% 45% 100%

While the tests was running the number of entries in the entry caches was monitored. When the cache was too small to fit all entries (100Mb), monitoring shows that when adding sudorules and hbacrules significantly reduce the number of entries in the cache. That means added entries are large static groups like hbac having 2200 members. The consequence of large static groups is that it moves out of the entry cache the members entries that memberof will update. So memberof updates will be slowed down because members entries need to be reloaded in entry cache for the updates.

In conclusion:

  • If provisioning contains large static group, it is better to have an entry cache that can fit all entries (groups and members)
  • having entry cache larger than 400Mb is likely not a good idea because it would also create a large memory footprint without giving much benefit
  • the benefit of caching all entries is in the range of 2-3 times

If the machine has enough memory, the entry cache could range from 100Mb to 400Mb. This tuning should leave enough free memory for the file system cache.

database cache tuning

Tuning of this attribute usually requires some iterating tests. In fact having a large cache allows to cache more DB pages but can be a problem during checkpointing. On the other side, db pages are also file pages. So before going into the DB cache those pages, even evicted from DB cache, usually remain into the file system cache and are easily reloaded.

Relying on file system cache is a good approach to keep as much DB page as possible. But on the other side having a too small DB cache can create constant reload.

If the machine has enough memory, the db cache could range from 200Mb to 500Mb. This tuning should leave enough free memory for the file system cache.

In my tests tuning of db cache has no noticeable impact. So if we need to save memory (for file system cache), it would be recommended to give the priority to entry cache

database locks

During tests it appears that the default number of database locks was too low. This can be monitored with

ldapsearch -LLL -o ldif-wrap=no -D "cn=directory manager" -w Secret123 -b "cn=database,cn=monitor,cn=ldbm database,cn=plugins,cn=config" nsslapd-db-configured-locks nsslapd-db-current-locks nsslapd-db-max-locks
dn: cn=database,cn=monitor,cn=ldbm database,cn=plugins,cn=config
nsslapd-db-configured-locks: 100000
nsslapd-db-current-locks: 8980
nsslapd-db-max-locks: 42675
One rule of thumb, for large provisioning, is to set database lock to the half of number of provisioned users and hosts.

Provisioning throughput and DS plugins

Small DB (10K entries)

The dataset is:

  • 5K users - each user is member of 10 users group
  • 4K hosts - each host is member of 5 hosts group
  • 100 users groups with 1000 users (+nested)
  • 100 hosts group with 400 hosts (+nested)
  • 100 sudorules with 2200 users/hosts (direct/indirect)
  • 100 hbacrules
    • 20 with 2200 users/hosts (direct)
    • 46 with 1400-1800 users/hosts (nested)
    • 23 with 400-800 users/hosts (nested)
    • 1 with no member


The following table present the provisioning duration and number of operations (vast majority of them are internal) depending which plugins are enabled:

Plugin enabled Provisioning Duration (**) ADD MOD SRCH
memberof slapi-nis retroCL Nb Cumul srch duration % srch duration
vs provi. duration (***)
Y Y Y 4h36min 580K
(95% retroCL)
560K
(all memberof)
15.4M 4h16min 93%
Y Y no 5h28min 15K 550K 14.6M 4h03 74%
Y no no 4h04min 15K 550K 13.8M 3h50 95%
no Y Y 12min(*) 39K 20K (DNA)
+ 9K (*)
0.9M
+ 0.4M(*)
N/A
no Y no 11min(*) 15K 20K (DNA)
+ 9K (*)
0.88M
+ 0.4M(*)
N/A
no no no 9min(*) 15K 20K (DNA)
+ 9K (*)
0.08M
+ 0.4M(*)
NA

(*) If memberof plugin is disabled during provisioning, the memberof attribute in the entries is not updated. So at the end of the provisioning, we need to run fixup tasks to rebuild this attribute in the entries. These duration are including fixup routines duration that last 5m30 and trigger 9K MOD/0.4M SRCH. Note that to run fixup routines, memberof plugin needs to be enabled.

(**) Some tests were not done the same day. Performance of the VM over the days is not that stable. Strict comparison of duration are not valid. The duration just gives a rough idea how long lasts the provisioning.

(***) 80% of the SRCH are below 1ms and 99.5% are below 2ms. To estimate the duration of the all SRCHs we take the hypothesis that each individual SRCH costs 1ms.

Regarding the response time of the hbacrules that are the longest ADD operations. There is no correlation between the duration of the ADD operation and the number of members.

HBAC rule Empty
group
Small grp (400-800) Medium grp (1400-1800)> Large grp (2200)
min. max. min. max. min. max.
Duration 58s 61s 136s 33s 135s min. max.
Medium DB (100K entries)

The dataset is:

  • 50K users
  • 40K hosts
  • x users groups with x users (+nested)
  • x hosts group with x hosts (+nested)
  • 100 sudorules with 22500 users/hosts (direct/indirect)
  • 100 hbacrules

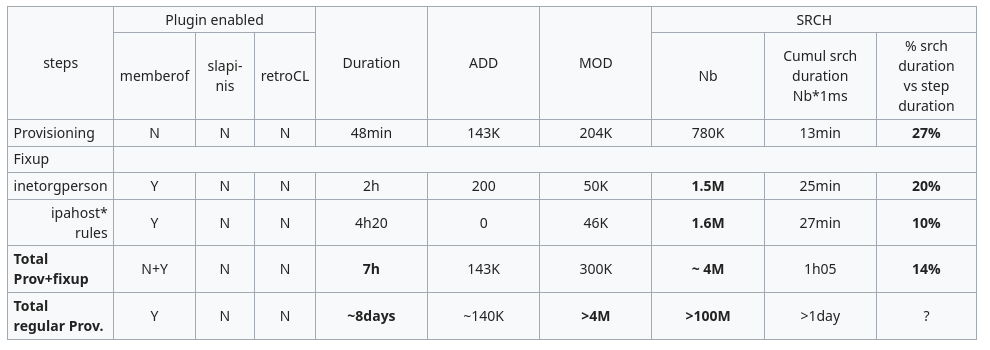

The following table shows value of provisioning of a medium DB in two steps:

  • provisioning without memberof
  • fixup of memberof
steps Plugin enabled Duration ADD MOD SRCH
memberof slapi-nis retroCL Nb Cumul srch duration
Nb*1ms
% srch duration
vs step duration
Provisioning N N N 48min 143K 204K 780K 13min 27%
Fixup
inetorgperson Y N N 2h 200 50K 1.5M 25min 20%
ipahost*
rules
Y N N 4h20 0 46K 1.6M 27min 10%
Total
Prov+fixup
N+Y N N 7h 143K 300K ~ 4M 1h05 14%
Total
regular Prov.
Y N N ~8days ~140K >4M >100M >1day ?
Memberof plugin

According to the measurements (see table), the major bootleneck is the memberof plugin. Disabling memberof during provisioning allows to make the full (provisioning+fixup) provisioning 20 times faster (13min instead of 4h14).

Accelarate provisioning worth restarting DS. The discussion on freeipa-devel concluded that it is acceptable to restart DS in order to accelerate provisioning.

Replication will slowly converge. In a replicated topology, it would be very difficult on all DS instances to disable memberof, wait for provisioned entries to be replicated and finally run the fixup. It is decided to disable/fixup only on the server where the provisioning occurs. The user experience of provisioning will be better than now. On replica, the replicated updates will be slow because of memberof being enabled but it will not be worse than now.

Schema compat plugin

According to the measurements (see table), the schema compat plugin is not a performance bottleneck. However, when memberof is disabled, it reduces the number of SRCH by an extra 90% and the overall duration by an extra 10%.

LDAP client is supposed to not access DS during provisioning so disabling Schema Compat during this period has no impact and the later restart will allow to reenable Schema Compat.

In conlusion, it gives an extra throughput benefice to disable Schema Compat during provisioning and to reenable it later. Preferably is to reenable it after the fixup, but then it will require one more restart.

RetroCL plugin

According to the measurements (see table), the Retro CL plugin is not a performance bottleneck. However, disabling retroCL reduces by 2*(#user + #hosts) the number of ADD.

The benefit is an extra reduction of 10% of the duration of the ADD. The drawback is that is that the server will no longer be able to syncrepl the provisioned entries.

This improvement is not that significant and if support of syncrepl is a requirement, it is ok to keep RetroCL enabled.

The ticket 48812 does not provide a measurable performance gain:

DBcache: 100Mb
Entrycache: 110Mb
DNcache: 60Mb

Memberof:     disabled
slapi-nis:     disabled
RetroCL:     enabled
Content:     enabled
DS Version Duration
Provisioning Fixup Total
1.3.4.9 3 min 58 2 min 53 6 min 51
1.3.5.6+48812 4 min 03 2 min 59 7 min 02
Conclusions
  • Disable memberof and run fixup. memberof plugin has a major impact on the throughput and duration of the provisioning. Even taking into account the provisioning and fixup tasks duration, the overall procedure is much faster. The expected benefit is in a range 20 times faster. The discussion on freeipa-devel concluded that it is acceptable to restart DS in order to accelerate provisioning
  • Disable Schema compat during provisioning and fixup. A possible option to save a restart is to enable Schema compa at the fixup time.
  • Keep enabled RetroCL, because the expected benefit does not worth loosing the ability to use syncrepl
  • accelerate provisioning gives a much better user experience of provisioning
  • slow replication of provisioned data existed before, so the situation after improving provision is not worse than before.

Proposed improvements

Algorithm

The CLI that will do the provisioning of a given ldif file will:

  • Retrieve "cn=directory manager" credential. Using DM is required to tune DS during provisioning and avoid ACL cost.
  • Parse ldif file to check that each provisioned entry matches one of the condition:
(objectClass=inetorgperson)
(objectClass=ipausergroup)
(objectClass=ipahost)
(objectClass=ipahostgroup)
(objectClass=ipasudorule)
(objectClass=ipahbacrule)
dn: cn=config,cn=ldbm database,cn=plugins,cn=config
changetype: modify
replace: nsslapd-dbcachesize
nsslapd-dbcachesize: <db_cache_size>
-
replace: nsslapd-db-locks
nsslapd-db-locks: <db_lock_number>
  • Compute and set the appropriate domain entry cache size
dn: cn=userRoot,cn=ldbm database,cn=plugins,cn=config
changetype: modify
replace: nsslapd-cachememsize
nsslapd-cachememsize: <entry_cache_size>
  • Disable memberof
dn: cn=MemberOf Plugin,cn=plugins,cn=config
changetype: modify
replace: nsslapd-pluginEnabled
nsslapd-pluginEnabled: off
  • Disable Schema Compat
dn: cn=Schema Compatibility,cn=plugins,cn=config
changetype: modify
replace: nsslapd-pluginEnabled
nsslapd-pluginEnabled: off
  • stop ipa (that will stop DS)
  • start DS
  • ldapadd -D "xxx" -y <password_file> -f <ldif_file>
  • Enable memberof
dn: cn=MemberOf Plugin,cn=plugins,cn=config
changetype: modify
replace: nsslapd-pluginEnabled
nsslapd-pluginEnabled: on
  • restart DS
  • Run fixup (and monitor completion) for each of the following filters (if it existed entries in the ldif file matching the filter).
fixup-memberof.pl  -D "cn=directory manager" -j <password_file> -Z server-id -b "suffix" -f "(objectClass=inetorgperson)" -P LDAP
fixup-memberof.pl  -D "cn=directory manager" -j <password_file> -Z server-id -b "suffix" -f "(objectClass=ipausergroup)" -P LDAP
fixup-memberof.pl  -D "cn=directory manager" -j <password_file> -Z server-id -b "suffix" -f "(objectClass=ipahost)" -P LDAP
fixup-memberof.pl  -D "cn=directory manager" -j <password_file> -Z server-id -b "suffix" -f "(objectClass=ipahostgroup)" -P LDAP
fixup-memberof.pl  -D "cn=directory manager" -j <password_file> -Z server-id -b "suffix" -f "(objectClass=ipasudorule)" -P LDAP
fixup-memberof.pl  -D "cn=directory manager" -j <password_file> -Z server-id -b "suffix" -f "(objectClass=ipahbacrule)" -P LDAP
  • Enable Schema Compat
dn: cn=Schema Compatibility,cn=plugins,cn=config
changetype: modify
replace: nsslapd-pluginEnabled
nsslapd-pluginEnabled: on
  • stop DS
  • start ipa
Provisioning constraints
Provisioning server is offline

Provisioning is done on a server where the memberof plugin is disabled. That means memberof attribute is invalid on that server until provisioning/fixup is completed.

That means that the server is considered to be offline because ldap client accessing it may receive invalid data.

An other option would be to run the provisioning on the IPA master and provision on ldapi. The advantages would be to

  • use autobind without the need of DM password.
  • disable ldap ports so that we are sure no ldap client can receive invalid data
    • Note that the replication to the IPA master will be stopped


Replication being late

Disabling memberof during provisioning allows a faster provisioning. Actually much faster than the same update on a replica where memberof is enabled.

If we are doing provisioning in a topology with single instance this is not an issue. But if there are replicas, replication will send added entries and on replicas the replicated provisioning will be processed much slower.

The consequence is that replicas will be very late (and possibly may require some tuning of the flow control of the replication)

For example provisioning of a medium size DB can put replicas days behind the provisioned replica. In such case a provision rule (hbac, sudo,...) can exist on the provisioned replica but will not exist for a long time on the others. If that rule grants some rights it can create security issue.

in conlusion:

  • it is recommended to not use fast provisioning on a replicated topology unless it is planed to reinitialize all replicas from the provisioned one.
Fixup procedure

Fixup is a procedure to compute the memberof attribute for a set of entries. This set is selected with a filter so if for example we added host entries, we can run the fixup command using the "(objectclass=ipaHost)".

A difficulty is to fixup all the provisioned entries so it is important to identify the filters that will cover all the provisioned entries. For example if we provision user/usergroup/host/hostgroup/sudorules/hbacrules the following set of filters will fixup all the them

(objectClass=inetorgperson)
(objectClass=ipausergroup)
(objectClass=ipahost)
(objectClass=ipahostgroup)
(objectClass=ipasudorule)
(objectClass=ipahbacrule)

A second difficulty is to have filters that do not overlap. Else we will fixup several times the same entries. For example adding usergroup/hostgroup the following set of filters overlaps because hostgroup also match the first filter.

(objectClass=groupofnames)
(objectClass=ipahostgroup)

A third difficulty is if provisioning is adding entries (e.g. user) in a server where it already exists others users. In that case the filter (objectClass=inetorgperson) will fixup the provisioned entries (that need to be fixup) as well as already existing ones (that do not need fixup).

provisioning command

The administrator who wants to do a bulk load of a set of LDAP entries that are contained in a ldif-file can use the command:

  • ipa provision ldif_entries_file [--password-file password_file]

ldif_entries_file contains the entries in a ldif format

password_file is a readable file that contains the directory manager password

Detailed descriptions of each provisioning costs

The objectif is to determine what makes memberof plugin so expensive compare to memberof fixup. The following paragraphs are a summary of the tests/results. No design or improvements are described in those paragraphs.

summary of the test

The provisioning adds in the following order users, groups of users, hosts, groups of hosts, sudorules and hbacrules. The specifications entries are:

  • 100 users
  • 20 users groups
    • 10 empty groups
    • 10 groups with 100 users + 1 nested group
  • 80 hosts
  • 20 hosts groups
    • 10 empty groups
    • 10 groups with 40 hosts + 1 nested group
  • 100 sudorules
    • 20 with 25 users and 20 hosts
    • 80 with 1 host group
  • 100 hbacrules
    • 20 with 25 users and 20 hosts
    • 80 with 1 host group

The overall time spent to provision all these objects

Objects memberof plugin
enabled disabled
add obj. fixup
Users 3sec 3sec 1sec
Users groups 7sec 2sec 0sec
Hosts 1sec 1sec 1sec
Hosts groups 5sec 1sec 0sec
Sudorules 16sec 2sec 0sec
Hbacrules 38sec 1sec 0sec
70 seconds 12 seconds

Note these values are taken for quite small groups. So the ratio with/without memberof is only 6 times. The ratio found in with larger groups (5000) raise up to 20 times. It is likely that with very large groups (100K and above), the ratio would be much higher.


The comparison of the ADD when the memberof plugin is enabled vs. disabled is 15 times less and is presented in the table below

Note the values are only for non empty groups (user/host)"

Objects memberof plugin
enabled disabled
Users 6 6
Users groups 105 3
Hosts 2 2
Hosts groups 90 5
Sudorules 47 2
Hbacrules 47 2
297 20


The comparison of the MOD when the memberof plugin is enabled vs. disabled is 35 times less presented in the table below

Note the values are only for non empty groups (user/host)"

Objects memberof plugin
enabled disabled
Users 4 4
Users groups 104 2
Hosts 0 0
Hosts groups 88 2
Sudorules 45 0
Hbacrules 45 0
286 8


The comparison of the SRCH when the memberof plugin is enabled vs. disabled is 3.3 times less presented in the table below

Note the values are only for non empty groups (user/host)"

Objects memberof plugin
enabled disabled
Users 22 22
Users groups 1342 813
Hosts 7 7
Hosts groups 718 201
Sudorules 918 243
Hbacrules 1313 13
4320 1299
provisioning with memberof plugin
add users

The add of one user triggers the following operations (1 direct, 31 internals): 6 ADDs, 4 MODs, 22SRCHs

Details:
ADD a user
   22 SRCHs
       5 for uniqueness (ipaUniqueID, krbPrincipalName, uid, uidNumber, gidNumber)
       3 for DNA config update (2 identicals (*))
       2 for DNA shared config (2 identicals (*))
       4 for group membership of the added user  (2 identicals (*))
       4 for group membership of the added private group  (2 identicals (*))
       2 for group membership
       2 for updating the added user with its private group
    4 MODs
       1 for DNA config
       1 for DNA shared config
       2 for updating the added user with its private group/entryusn (curiously the first update fails with LDAP_TYPE_OR_VALUE_EXISTS)
    6 ADD
       user ADD
       private group ADD
       retroCL log of ADD user
       retroCL log of MOD of DNA share config
       retroCL log of ADD private group
       retroCL log of MOD user (adding its private group)

(*) Searches are identicals
add a usergroup

The add of one user group triggers the following operations:

  • If the group is empty (1 direct, 31 internals): 3 ADDs, 2 MODs, 15SRCHs
Details:
ADD an empty usergroup
   15 SRCHs
       3 for uniqueness (ipaUniqueID, uidNumber, gidNumber)
       3 for DNA config update (3 identicals (*))
       2 for DNA shared config (2 identicals (*))
       1 for ?? (lookup objectclass=ipantdomainattrs)
       2 for group members (2 identicals (*))
       4 for group membership of the added user group  (2 identicals (*))
    2 MODs
       1 for DNA config
       1 for DNA shared config

    3 ADD
       user group
       retroCL log of ADD user
       retroCL log of MOD of DNA share config
  • If the group contains 102 members (100+2nested) (1 direct, 105ADD, 104 MOD, 1342 SRCH)
Details:

ADD usergroup with 100 user member and 2 nested groups

   1342 SRCHs
       3 for uniqueness (ipaUniqueID, uidNumber, gidNumber)
       3 for DNA config update (3 identicals (*))
       2 for DNA shared config (2 identicals (*))
       1 for ?? (lookup objectclass=ipantdomainattrs)
       1 for group members
       202 = 2 identical searchs per direct members  (retrieve all attribute including member that are lookup below)
       101 = searchs for members of each direct member [435]
         2 = 2 indentical search per indirect members (retrieve all attribute including member that are lookup below)
         1 = searchs for members of each indirect member
       102 = search for 'uid' of each direct/indirect members [643]

       1 for group members [847]
       202 = 2 identical searchs per direct members  (retrieve all attribute including member that are lookup below)
       101 = searchs for members of each direct member [1254] (slapi-nis ?)
         2 = 2 indentical search per indirect members (retrieve all attribute including member that are lookup below)
         1 = searchs for members of each indirect member

       1 for group members [1459]
       103 = search for members direct/indirect of the group 'ipaexternalmember' (slapi-nis ?)

       4 search for group memberships [1665]

       for each member (total srch = 510 (102*5), 102 ADD, 102 MOD)
           1 search "member memberUser memberHost"
           1 search group owner of the member
           1 search group owner of the usergroup (done at each iteration)
           1 MOD + 1 ADD (see MOD/ADD)
           2 search of the member (2 identical)
   104 MODs
       1 for DNA config
       1 for DNA shared config
       for each member (102)
           MOD users to add 'memberof'

   105 ADDs
       user group
       for each member (102)
               RetroCL log for above MODs (MOD member to add 'memberof')
add host

The add of one host triggers : 2 ADD, 7 SRCHs

Details:
ADD a host
   7 SRCH
       2 search (uniqueness ipaUniqueID, krbPrincipalName)
       4 membership search (2 identical)
       1 search for group from 'ipantdomainattrs'
   2 ADD
       add host
       RetroCL add
add a hostgroup

The add of one host group triggers the following operations:

  • If the group is empty (1 direct, 39 internals): 5 ADDs, 3 MODs, 32SRCHs
Details:
ADD empty hostgroup
   32 SEARCHES
       1 search (uniqueness ipaUniqueID)
       4 membership search (2 identical)
       5 search of the alt networkgroup (3 for 'member', 1 for 'memberuser', 1 for 'memberhost')
       6 searches of added hostgroup (2 for ALL, 1 for 'memberuser', 1 for 'memberhost, 1 for 'fqdn', 1 for "member memberUser  memberHost")
       8 searches to find groups owning alt networkgroup
       2 searches to find groups owning hostgroup
       4 search of add hostgroup (4 identical) related to MODs
       1 search for group from 'ipantdomainattrs'

   3 MOD
       1 update hostgroup to 'memberof' alt networkgroup (memberof plugin)
       1 update hostgroup to 'mepManagedEntry' alt networkgroup (mep plugin) ((curiously the first update fails with LDAP_TYPE_OR_VALUE_EXISTS)
   5 ADD
       add hostgroup
       add hostgroup alt networkgroup (slapi-nis)
       3 retroCL
  • If the hostgroup contains 42 members (40 direct, 2 nested) (1 direct, 895 internals): 90 ADDs, 88 MODs, 718 SRCHs
Details:
ADD hostgroup with 42 members (nested)
   718 SRCH
       1 search (uniqueness ipaUniqueID)
       4 membership search (2 identical)

       5 search of the alt networkgroup (3 for 'member', 1 for 'memberuser', 1 for 'memberhost')

       for each member (42): total = 84srch
               2 search of the member entry (identical BUG)

       for each member (42): total = 84
               1 search of 'member'
               1 search of 'fqdn'

       10 search to find groups owning hostgroup (4 identical )

       for each member (42): total = 252srch [405->1125]
           /* related to the MOD 'memberof' of the member */
           1 search to find the member "member memberUser memberHost"
           1 search to find groups owning member
           2 search to find groups owning hostgroup (identical BUG + same search for each member)
           2 search member during MOD (identical BUG ?)

       for each member (42): total = 252srch [1125->1760]
           /* related to the second "BUGGY" MOD 'memberof' of the member */
           1 search to find the member "member memberUser memberHost"
           1 search to find groups owning member
           2 search to find groups owning hostgroup (identical BUG + same search for each member)
           2 search member during MOD (identical BUG ?)

    87 MOD
       for each host in hostgroup [418]
           update 'memberof' for hostgroup and alt networkgroup
       for each host in hostgroup (Yes this is done twice ! BUG) [1122]
           update 'memberof' for hostgroup and alt networkgroup
       update hostgroup for 'mepmanageentry'

    90 ADD
      add hostgroup
      add alt networkgroup
      88 RetroCL add due to MODs
add sudorules

Adding one sudorule with 25 users/20 hosts, triggers the following internal operations 47 ADDs, 45 MODs and 918 SRCH

Details:
ADD sudorules 25 users/20 hosts
   918 SRCH
       1 search (uniqueness ipaUniqueID)
           /* Follow comes slapi-nis 'cn=sudoers,cn=Schema Compatibility' */
               for each memberHost (20): 40
                   2 search host (2 identical BUG - objectclass=ipaHostGroup)(!(objectclass=mepOriginEntry))

               for each memberuser (25): 25
                   1 search 'cn'

               for each memberHost (20): 20
                   1 search host ((objectclass=ipaHostGroup)(objectclass=mepOriginEntry))

               for each memberUser (25): 25
                   1 search 'uid'

               for each memberHost (20): 20
                   1 search host (ipaNisNetgroup)

               for each memberHost (20): 20
                   1 search host (objectclass=ipaHost)

               for each memberUser (25): 50
                   2 search host (2 identical BUG - (objectclass=ipaUserGroup)(!(objectclass=posixGroup))

               for each memberUser (25):  25
                   1 search user (objectclass=ipaNisNetgroup)

       10 searchs to find if add sudorules belong to a group

       For each memberUser (25):
           /* search all groups it can belong to */
           10 search based on member 'memberof'

   45 MOD
       for each users:
           update memberof attribute to add the 'ipaUniqueID=xxx,cn=sudorules,cn=sudo,<suffix>' value
       for each host:
           update memberof attribute to add the 'ipaUniqueID=xxx,cn=sudorules,cn=sudo,<suffix>' value

   47 ADD
       add sudorule
       RetroCL add sudorule + 45 updates of memberof (MODs)


add hbacrules

Adding one sudorule with 25 users/20 hosts, triggers the following internal operations 47 ADDs, 45 MODs and 1313 SRCH

Details:
ADD hbacrule 25 users/20 hosts
   1313 SRCH
       For each memberUser 25:
           search the groups it belongs to (17)

       For each memberHost 20:
           search the groups it belongs to (40)

   45 MOD
       for each users:
           update memberof attribute to add the 'ipaUniqueID=xxx,cn=hbacrules,cn=hbac,<suffix>' value
       for each host:
           update memberof attribute to add the 'ipaUniqueID=xxx,cn=hbacrules,cn=hbac,<suffix>' value
   47 ADD
       add hbacrule
       RetroCL add hbacrule + 45 updates of memberof (MODs)
provisioning without memberof plugin
add user

The add of one user gives same results as add user with memberof plugin

add usergroup (no memberof)

The add of one user group triggers the following operations:

  • If the group is empty (1 direct, 19 internals): 3 ADDs, 2 MODs, 15SRCHs - this is identical results vs add an empty user group with memberof
  • If the group contains 102 members (100+2nested) (1 direct, 3ADD, 2 MOD, 813 SRCH)
Details:
   813 SRCHs
       3 for uniqueness (ipaUniqueID, uidNumber, gidNumber)
       3 for DNA config update (3 identicals (*))
       2 for DNA shared config (2 identicals (*))
       1 for ?? (lookup objectclass=ipantdomainattrs)
       A) for each group members (102): (total 204)
           2 identical base search of the member all_attr (BUG)
       B) for each group members (102): (total 102)
           base search of the member 'member' (BUG it could reuse the A)
       C) for each group members (102): (total 102)
           base search of the member 'uid' (BUG it could reuse the A)
       D) identical to A (total 102)
       E) identical to B (total 102)
       F) for each group members (102): (total 102)
           base search of the member 'ipaexternalmember' (BUG it could reuse the A)

   2 MODs
       1 for DNA config
       1 for DNA shared config

   3 ADDs
       user group
       RetroCL for user_group and MOD DNA

add host

The add of one host gives same results as add host with memberof plugin

add hostgroup

The add of one hostgroup triggers the following operations:

  • If the hostgroup is empty (1 direct, 34 internals): 5 ADDs, 3 MODs, 27SRCHs

It gives results almost identical to add an empty hostgroup with memberof plugin. But memberof plugin triggers 5 more internal searches (2 membership and 3 on the added hostgroup), so running without memberof plugin saves 5 SRCHs.

  • if the hostgroup contains 42 members (40 direct, 2 nested) (1 direct, 895 internals): 5 ADDs, 2 MODs, 201 SRCHs
Details:
ADD hostgroup with 42 members (nested)
   201 SRCH
       1 search (uniqueness ipaUniqueID)
       4 membership search on netgroup
       4 membership search on groups

       5 search on add hostgroup (2 ALL, 1 'member', 1 'fqdn', 1 'memberHost' , 1 'member')

       for each member (42): total = 84srch
               2 search of the member entry (identical BUG)

       for each member (42): total = 84
               1 search of 'member'
               1 search of 'fqdn'

       9 searches to find groups (ng, users, groups, computers, hostgoups) owning the added hostgroup

    2 MOD
       2 update hostgroup to 'mepManagedEntry' alt networkgroup (mep plugin) (the first MOD fails with LDAP_TYPE_OR_VALUE_EXISTS)

    5 ADD
      add hostgroup
      add alt networkgroup
       RetroCL add due to MODs
add sudorule

Adding one sudorule with 25 users/20 hosts, triggers the following internal operations: 2 ADD, 0 MOD, 243 SRCH

Details:
ADD sudorules 25 users/20 hosts
   243 SRCH
       1 search (uniqueness ipaUniqueID)
               for each memberHost (20): 40
                   2 search host all_attrs (2 identical BUG - objectclass=ipaHostGroup)(!(objectclass=mepOriginEntry))

               for each memberuser (25): 25
                   1 search 'cn'

               for each memberHost (20): 20
                   1 search host 'cn' ((objectclass=ipaHostGroup)(objectclass=mepOriginEntry))

               for each memberUser (25): 25
                   1 search 'uid'((objectclass=posixAccount))

               for each memberHost (20): 20
                   1 search host 'cn' ((objectclass=ipaNisNetgroup))

               for each memberHost (20): 20
                   1 search host 'fqdn' (objectclass=ipaHost)

               for each memberUser (25): 50
                   2 search host (2 identical BUG - (objectclass=ipaUserGroup)(!(objectclass=posixGroup))

               for each memberUser (25):  25
                   1 search user (objectclass=ipaNisNetgroup)

       10 searchs to find if added sudorules belong to a group (user/ng/hostgroups/grous/computers)

       For each memberUser (25):
           /* search all groups it can belong to */
           10 search based on member 'memberof'

   0 MOD

   2 ADD
       add sudorule
       RetroCL add sudorule
add hbacrules

Adding one sudorule with 25 users/20 hosts, triggers the following internal operations 2ADD, 0 MOD, 13 SRCH

Details:
ADD hbacrule 25 users/20 hosts
   13 SRCH
       1 search (uniqueness ipaUniqueID)
       10 searchs to find if added hbacrules belong to a group (user/ng/hostgroups/grous/computers)
       1 unindexed search in sudorules if one of them owns the added hbacrule

           (&(&(objectclass=ipaSudoRule)
               (!(compatVisible=FALSE))
               (!(ipaEnabledFlag=FALSE)))
             (|(memberUser=ipauniqueid=22f91e42-0d34-11e6-9927-001a4a2314dc,cn=hbac,<SUFFIX>)
               (memberHost=ipauniqueid=22f91e42-0d34-11e6-9927-001a4a2314dc,cn=hbac,<SUFFIX>)
               (ipaSudoRunAsGroup=ipauniqueid=22f91e42-0d34-11e6-9927-001a4a2314dc,cn=hbac,<SUFFIX>)
               (memberAllowCmd=ipauniqueid=22f91e42-0d34-11e6-9927-001a4a2314dc,cn=hbac,<SUFFIX>)
               (ipaSudoRunAs=ipauniqueid=22f91e42-0d34-11e6-9927-001a4a2314dc,cn=hbac,<SUFFIX>)
               (memberDenyCmd=ipauniqueid=22f91e42-0d34-11e6-9927-001a4a2314dc,cn=hbac,<SUFFIX>))
           )

   0 MOD

   2 ADD
       add hbacrule
       RetroCL add hbacrule
memberof fixup
filter OC Operation
ADD MOD SRCH
inetorgperson 100 100 2310

Hypothese

The preliminary tests of memberof fixup, shows that both procedures are equivalent in terms of final results but much faster (fixup) in term of throughput.

A possible explanation is that each time we add a group with members, it triggers the recomputation of the 'memberof' attribute. It is time consuming (internal search) because if an entry is member of N groups (direct or nested) and those N groups are composed of M entries. When the entry is added to a new goup, memberof plugin recomputes 'memberof' attribute and needs to lookup each of the M entries to know if they are themself groups.

There is a waste of time if a group/member was evaluated when adding an entry and need to be evaluated again when adding a second entry.


With fixup we do this evaluation only once

Note the 389-ds memberof RFE 47963 has no impact on performace with the current use case. In fact, freeipa uses nested group but perf hit is not due to nested groups.

all commands

Caching issue described in [1] affects all IPA commands.

all commands working with members and indirect members

Related ticket(s): #4995

Get member and indirect members is resource consuming operation and usually user don't want all membership details. IPA already has hidden option --no-members that can be public visible.

Summary: option --no-members is publicly visible for all commands

*-find

members and indirect members processing

Related ticket(s): #4995

host-find (2000 hosts):
76640658 function calls (75069144 primitive calls) in 227.351 seconds

   Ordered by: cumulative time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
 ....
        1    0.103    0.103  227.348  227.348 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:2015(execute)
73967/73966    3.240    0.000  186.341    0.003 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:1272(find_entries)
   247887    1.882    0.000  131.877    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:87(_ldap_call)
   173920    0.392    0.000  127.617    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:472(result3)
   173920    0.953    0.000  127.225    0.001 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:480(result4)
   173920  123.784    0.001  123.784    0.001 {built-in method result4}
     2000    2.283    0.001  111.509    0.056 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:637(convert_attribute_members)
     2000    0.014    0.000  104.078    0.052 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:672(get_indirect_members)
     2000    0.249    0.000  104.064    0.052 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:706(get_memberofindirect)
    77961    0.571    0.000   85.341    0.001 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:598(get_primary_key_from_dn)
    67965    0.323    0.000   79.816    0.001 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:1415(get_entry)
   173919    1.286    0.000   23.806    0.000 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:895(_convert_result)
   283906    0.407    0.000   16.624    0.000 /usr/lib/python2.7/site-packages/ipapython/dn.py:1265(endswith)
   283906    0.996    0.000   16.077    0.000 /usr/lib/python2.7/site-packages/ipapython/dn.py:1280(_tailmatch)
 ....

As is show in output of profiler, the most time consuming operations are convert_attribute_members, get_indirect_members, get_primary_key_from_dn

Possible solutions:

Do not fetch members by default

This change is related to all *-find commands. Fetching members and indirect members is expensive operation for find commands. By default *-find commands will not do members processing. To get members in *-find command option --all should be used.

Note: this changes makes output of *-find commands backward incompatible.

Note: due API backward compatibility option --no-members must be still present even if it has no effect on *-find commands. This option can be hidden in CLI for *-find commands

Note: user-find already does not return members in result without --all option

Temporal caching of members during *-find command

This has not been implemented in 4.4, due technical issues with cache. Prototype of the cache does not cover corner cases, so time was not reduced as much as listed here. There was only minor enhancement and was decided to postpone this

Caching may heavily reduce amount of ldapsearches and internal framework operations.

Test with cache only for convert_attribute_members method reduces total time of operation from 227.351 (111.509) to 113.474 (3.892) seconds

 16803443 function calls (16602409 primitive calls) in 113.474 seconds
   Ordered by: cumulative time

   ncalls  tottime  percall  cumtime  percall filename:lineno(function)
        1    0.031    0.031  113.471  113.471 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:2015(execute)
8137/8136    0.512    0.000  103.554    0.013 /usr/lib/python2.7/site-packages/ipapython/ipaldap.py:1272(find_entries)
     2000    0.013    0.000   98.526    0.049 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:672(get_indirect_members)
     2000    0.254    0.000   98.513    0.049 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:706(get_memberofindirect)
    50397    0.342    0.000   93.376    0.002 /usr/lib64/python2.7/site-packages/ldap/ldapobject.py:87(_ldap_call)
....
    44123    0.874    0.000    4.029    0.000 /usr/lib64/python2.7/site-packages/ldap/dn.py:56(dn2str)
     2000    0.321    0.000    3.892    0.002 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:2120(convert_attribute_members)
     2000    0.039    0.000    3.204    0.002 /usr/lib/python2.7/site-packages/ipalib/util.py:293(convert_sshpubkey_post)
   469301    1.701    0.000    2.919    0.000 /usr/lib64/python2.7/site-packages/ldap/dn.py:20(escape_dn_chars)
 ....
     2161    0.012    0.000    0.233    0.000 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:598(get_primary_key_from_dn)
 ....

For case when

number of groups/sudorules/hostgroups/hbacrules/roles << number of users/host

the cache is very effective. In other way cache can cause small slowdown but it should not be very noticeable.

The cache must be invalidated after each *-find call. There is no need for having outdated copy of ldap data.

Indirect members

Now the most time consumig operation is getting indirect members:

     2000    0.013    0.000   98.526    0.049 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:672(get_indirect_members)
     2000    0.254    0.000   98.513    0.049 /usr/lib/python2.7/site-packages/ipalib/plugins/baseldap.py:706(get_memberofindirect)

For indirect members, each entry currently requires 2 LDAP searches. Implemented search are very effective, but results are not usable for caching (because each search returns entries specific for the current entry). The code might be rewritten to get nested entries per group/hostgroup and store it in cache to be able reuse results. However this change is not trivial with lot of caveats and might not bring too much performance. For now we can keep conversion of indirect members as it is.

Other possibilities are:

  • just do direct membership and add option to enable indirect-membership
  • don't do indirect membership at all
  • try to implement cache for indirect membership

Test Plan

Performance Improvements V4.4 test plan
