PKCS11_in_LDAP#

Overview#

Store cryptographic objects (public and private keys, certificates) in LDAP for use by PKCS#11 soft-token module.

Use Cases#

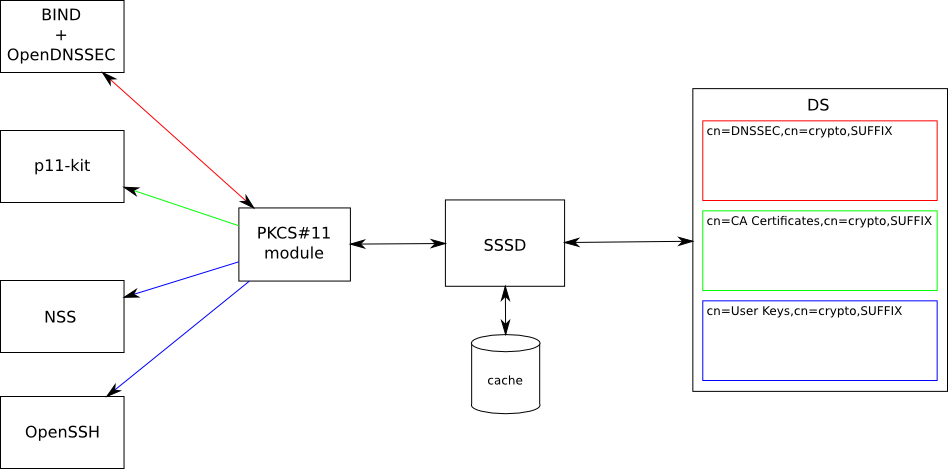

The PKCS#11 module can be plugged into various applications and provide the data to them:

Design#


The data is organized into subtrees, each representing a token in the PKCS#11 module. Access control is handled by ACIs on per-token and per-object level.

Object classes:

  • Private key - private key as per PKCS#11 spec

  • Public key - public key as per PKCS#11 spec

  • Certificate - X.509 certificate as per PKCS#11 spec

  • Trust - NSS vendor-specific trust object

The LDAP schema design is on separate page.

Subtrees/tokens:

  • cn=DNSSEC

    • private key and public key objects

    • read and write access for IPA DNS masters, read access to public keys for everyone

  • cn=CA Certificates

    • certificate and trust objects

    • read access for everyone, write access for IPA masters

  • cn=User Keys

    • private key and certificate objects

    • read and write access to individual objects for their owner

How applications interact with PKCS#11#

  • BIND v9.10b1 - PKCS functions seen by ltrace while runnin on top of SoftHSMv2 Full log

    • uses digest, sign, verify, keygen and RNG functions

    • does not persist any objects

    • searches objects by CKA_CLASS, CKA_KEY_TYPE, CKA_ID, CKA_LABEL, CKA_TOKEN

  • OpenDNSSEC

    • uses digest, sign, keygen and RNG functions

    • persists private key objects with CKA_LABEL, CKA_ID, CKA_KEY_TYPE, CKA_SIGN, CKA_DECRYPT, CKA_UNWRAP, CKA_SENSITIVE, CKA_TOKEN, CKA_PRIVATE, CKA_EXTRACTABLE and key-type specific attributes

    • persists public key objects with CKA_LABEL, CKA_ID, CKA_KEY_TYPE, CKA_VERIFY, CKA_ENCRYPT, CKA_WRAP, CKA_TOKEN and key-type specific attributes

    • searches objects by CKA_CLASS, CKA_ID

    • utility “ods-hsmutil test” can test given PKCS#11 module

  • p11-kit

    • proxies function calls to external PKCS#11 module

    • does not persist any objects

  • NSS

  • OpenSSH

    • uses sign functions

    • does not persist any objects

    • searches objects by CKA_CLASS, CKA_ID, CKA_SIGN

The PKCS#11 module needs to provide cryptographic functions, either by re-using existing solution (e.g. SoftHSM) or by implementing a thin layer on top of NSS cryptographic functions.

TODO

Implementation#

TODO

Feature Management#

UI

N/A

CLI

N/A

Major configuration options and enablement#

N/A

Replication#

N/A

Updates and Upgrades#

FreeIPA is going to have Vault suitable for key material storage. There was an proposal to use this Vault as private-key storage for PKCS#11 module instead of plain LDAP.

This idea was postponed because Vault implementation will take some time. For now we need to support private-keys stored in LDAP. To be future-proof, we have to have upgrade path from plain LDAP to Vault.

Please see discussion on freeipa-devel (it was focused on private keys used for DNSSEC).

There are two basic approaches:

  • (a radical one) One-shot migration:

    • Upon replica-upgrade, convert all private keys from LDAP to Vault and replace all private keys in LDAP with a reference to Vault.

    • Old clients will no longer see private keys over PKCS#11 so clients need to be upgraded.

    • This is feasible only if set of clients is very limited, e.g. only DNSSEC machinery (BIND + OpenDNSSEC) running on IPA replicas.

  • (a conservative one) Use configuration information from LDAP (e.g. in cn=etc or so) to detect if some old replicas/clients are still in the topology and run auxiliary daemon for LDAP<->Vault synchronization.

Dependencies#

N/A

External Impact#

The objects will be accessed mainly through the PKCS#11 module. The PKCS#11 module will use SSSD as backend.

Backup and Restore#

N/A

Test Plan#

TODO

RFE Author#

Jan Cholasta
