V4/Diagnostics Tool

Name: V4/Diagnostics Tool
Ticket: #4008
Target version: 4.7.0
Incomplete.png Pending review
Last updated: 2017-03-14 by Mbasti


FreeIPA bundles a number of different services and each of them has certain environment or configuration sensitivity points. Although the basic goal of FreeIPA is to automate the setup as much as possible, there are external areas, which are not under its control and need to be checked that they were configured properly. Additionally, there is possibility of working configuration crumbling over time due to improper upgrades or unintentional harmful admin intervention.

The purpose of this design is to introduce the ipa diagnostics tool, which would be able to assert FreeIPA environment and configuration conditions which are mandatory for proper functioning of IPA setup. This is the primary goal.

As a secondary goal, much of the code can be reused to add the capability of inspecting the FreeIPA environment and providing succint, anonymyzed information bundle of the FreeIPA deployment.

Use Cases

  • Detecting any misconfigurations and environment problems
  • Log analysis of the running IPA instance for any known problems
  • FreeIPA deployment information extraction


Design goals

  • Ability to gather information and problems from the current instance.
  • Ability to gather information from the remote instances (replicas and clients).
  • Clear audit trail for the commands issued by the tool.
  • Simple user interface, tool should be intelligent enough to figure out where it is (client/server) and what plugins it can run under current privileges.
  • Structured output

Tool high-level overview

To meet the high level goals defined above, the tool needs to be able to gather information from the IPA master, analyze it and preform additional checks and produce the results both in human-friendly and machine-friendly format.

To encourage both maintainability and community contributions, all the non-core parts are highly pluggable. The ipa-diagnosis tool consists of three main parts:

  • The ipa-diagnosis core (plugin handling, communication with other replicas, CLI interface)
  • Reporter plugins (gather information about the particular FreeIPA replica)
  • Doctor plugins (performs checks on the particular FreeIPA replica)

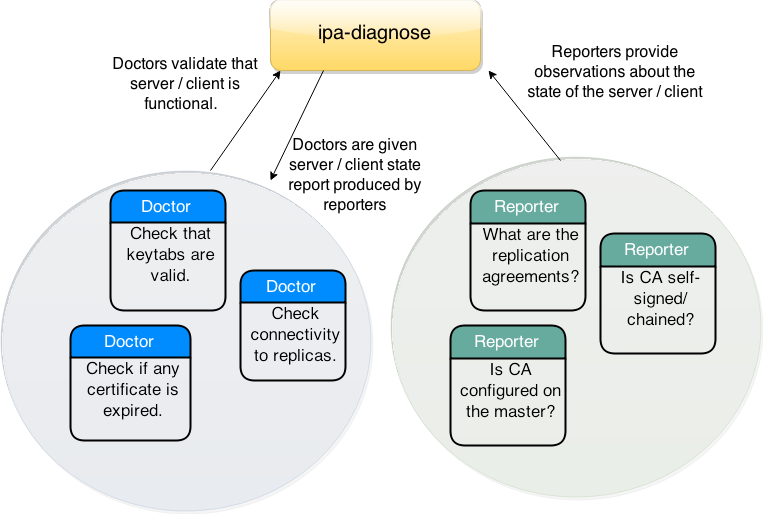

The simplified overall structure of the diagnosis tool itself is best described with the following diagram:


Fetching reports from other replicas

However, in the scenario above, any Doctors that want to check not only health of one replica, but health of the whole deployment will not have necessary information. Consider a Doctor plugin which will try to detect broken replication agreements. Since replication agreement is bidirectional, such a plugin would need a list of replication agreements from both the replicas.

Therefore, a mechanism to fetch the reports from replicas needs to be introduced. Following diagram describes the simplest case with one master and one replica:


However, in case of more complicated replication topology, we cannot be sure that all IPA replicas are accessible from the IPA master we run the ipa-diagnosis command on. The only guarantee is that replicas which have established replication agreements are able to connect to each other. Each replica which has diagnosis performed on itself as a part of the health check of the whole deployment, needs to be able to request diagnosis results from other replicas, and convey that information back to the original master which initiated the check.

In the non-ideal case, the health check of the deployment might look as in the illustration below:


Please note, as the example above suggest, that ipa-diagnose is not limited to IPA replicas, but it can also check health of IPA clients.

Connection fallbacks

In general, ipa-diagnose will use admin's credentials (kerberos ticket) to SSH into other hosts. In case of infrastructure failure (KDC not being available), will downgrade through other auth mechanisms down to the interactive password authentication.


Implementation goals

  • Provide pluggable API for drop-in Doctors and Reporters
  • Tool should be resiliant to plugin failures and missing dependencies

Reporter plugin

Each reporter is a small modular plugin implementing a simple interface, which aims to provide single or multiple pieces of information about the system.

Doctor plugin

Each doctor is a small modular plugin which consumes information produced by the reporters, and performs additional checks on the system.

Report format

Feature Management


Both CLI and WebUI interface is available. Web User interface is provided as a plugin to the Cockpit project. [1]. Optionally it can be embedded from the FreIPA WebUI.


Overview of the CLI commands. Example:

Command Options
ipa-diagnose [--help]



There is no impact on upgrades, diagnostics plugins should be able to work with multiple versions of underlying FreeIPA packages.

How to Test


Test Plan

Given the nature of the tool, it should be covered by integration tests, which would break/misconfigure IPA in particular way, and detect, whether ipa-diagnose can properly detect / advise / fix the issue.


Tomas Babej
