V4/Automatic Certificate Request Generation/Schema

This page is an obsolete previous version of the storage components of the Automatic Certificate Request Generation design. We begin with an informal overview of the design, followed by an effort to flatten the informal schema description into a valid LDAP schema.

Note: OIDs are taken from the space immediately after the other certificate profiles schema in install/share/60certificate-profiles.ldif.

Overview

Cert mapping rule objects:

Additions to cert profile objects:

  • Cert mapping rule (multi-value):
    • DN of cert mapping rule for syntax and name of field
    • DN of cert mapping rule for field value (multi-value)

Example

A profile for an S/MIME user cert should have the following cert mapping rules:

  • Cert mapping rule
    • NameRule: "subjectName"
    • ValueRule: "defaultOrganizationDN"
  • Cert mapping rule
    • NameRule: "subjectAltName"
    • ValueRule: "qualifiedEmailAddress"
    • ValueRule: "qualifiedDirName"

Then, the definitions of these cert mapping rules (transformations currently given using NIS function specifier syntax but see V4/Automatic_Certificate_Request_Generation/Mapping_Rules for discussion of alternatives):

    • Name: subjectName
    • Description: Subject Name field of certificate.
    • Transformation rule
      • Helper: openssl
      • Template: "distinguished_name=%{values}"
    • Transformation rule
      • Helper: certutil
      • Template: "-s %{values}"
    • Name: defaultOrganizationDN
    • Description: Principal name as CN, with default O field appended.
    • Transformation rule
      • Helper: openssl
      • Template: "CN=%{cn},O=EXAMPLE.COM"
    • Transformation rule
      • Helper: certutil
      • Template: "CN=%{cn},O=EXAMPLE.COM"
    • Name: subjectAltName
    • Description: Subject Alternate Name extension.
    • Transformation rule
      • Helper: openssl
      • Template: "subjectAltName=%merge(',', %{values})"
    • Transformation rule
      • Helper: certutil
      • Template: "--extSAN=%merge(',', %{values})"
    • Name: qualifiedEmailAddress
    • Description: Principal's email address, with tag to mark it as an email.
    • Transformation rule
      • Helper: openssl
      • Template: "email:%{email}"
    • Transformation rule
      • Helper: certutil
      • Template: "rfc822:%{email}"
    • Name: qualifiedDirName
    • Description: Principal's DN, with tag to mark it as a dirName.
    • Transformation rule
      • Helper: openssl
      • Template: "dirName:%opensslSection(%{dn})"
    • Transformation rule
      • Helper: certutil
      • Template: "dn:%merge(',', %{dn})"

Note: %opensslSection is a hypothetical openssl-specific directive that would create a new config file section for the components of %{dn} and place a reference to that section in the template output.

Certificate Profiles

The objects in this section will be considered conceptually part of the certificate profile, and represent the way that specific profile is configured to build a certificate request. These objects will be imported and exported along with the certificate profile.

CertProfile additions

In each CertProfile, we can now list the fields that need to be mapped into the certificate request.

  • Cert field mapping (multi-value): reference to CertFieldMappingRule
attributeTypes: (2.16.840.1.113730.3.8.21.1.9 NAME 'ipaCertFieldMapping' DESC 'Reference to ipaCertFieldMappingRule: Ruleset describing how to construct a certificate field' SUP distinguishedName EQUALITY distinguishedNameMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.12 X-ORIGIN 'IPA v4.5' )
objectClasses: (2.16.840.1.113730.3.8.21.2.1 NAME 'ipaCertProfile' SUP top STRUCTURAL MUST ( cn $ description $ ipaCertProfileStoreIssued ) MAY ipaCertFieldMapping X-ORIGIN 'IPA v4.2' )

CertFieldMappingRule

This object represents the way a particular field should be constructed in CSRs for this certificate profile.

  • Name
  • Cert syntax mapping: DN of CertMappingRuleset for syntax and name of field
  • Cert data mapping (multi-value): DN of CertMappingRuleset for field value
attributeTypes: (2.16.840.1.113730.3.8.21.1.10 NAME 'ipaCertSyntaxMapping' DESC 'Reference to ipaCertMappingRuleset: How to format the specification for this field' SUP distinguishedName EQUALITY distinguishedNameMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.12 SINGLE-VALUE X-ORIGIN 'IPA v4.5' )
attributeTypes: (2.16.840.1.113730.3.8.21.1.11 NAME 'ipaCertDataMapping' DESC 'Reference to ipaCertMappingRuleset: How to map data into field values' SUP distinguishedName EQUALITY distinguishedNameMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.12 X-ORIGIN 'IPA v4.5' )
objectClasses: (2.16.840.1.113730.3.8.21.2.4 NAME 'ipaCertFieldMappingRule' SUP top STRUCTURAL MUST ( cn $ ipaCertSyntaxMapping $ ipaCertDataMapping ) X-ORIGIN 'IPA v4.5' )

Mapping Rules

The objects in this section conceptually make up the "mapping rules." They are built into FreeIPA (or, once the ability to do so is added, created by an administrator).

Each rule for transforming data to config syntax must be associated with the specific helper that can consume that syntax. There are two possible approaches to representing this association. Option B, which uses attribute tagging to record the helper, has one fewer objectClass and stores the data in fewer objects. However, it limits future extensibility because the rule is stored in text string rather than having its own entry. This means that if additional metadata is required (as a possible example, one might want to record whether a string represents a command-line option or a config file line) it will need to be encoded in the text of the rule. It is difficult to determine whether this is a serious problem.

Option A

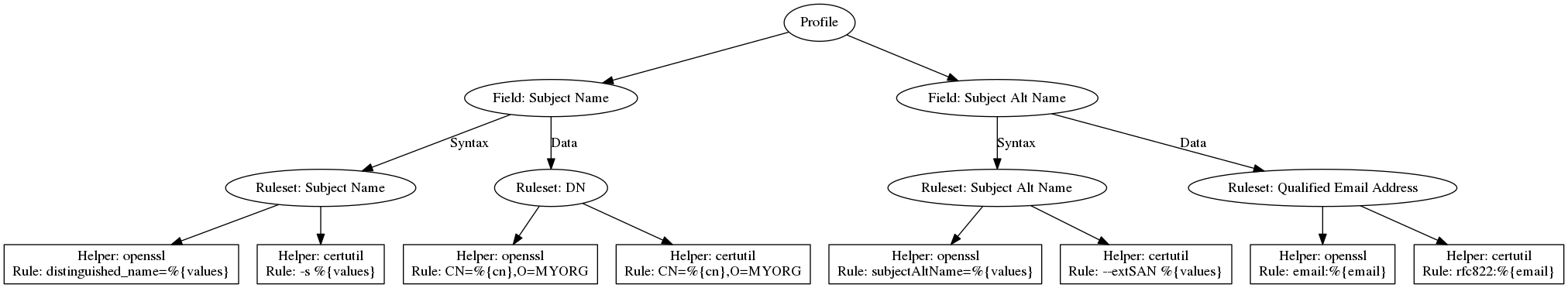

In this option, the association to helpers is accomplished by placing each rule in a separate CertTransformationRule object that records both the rule and the helper that it belongs to. A CertMappingRuleset references several of these CertTransformationRules, as seen in the following diagram: CertMappingSchemaA.dot.png

CertMappingRuleset

This object represents the ways a data item might need to be formatted to achieve a particular CSR result, for all the different CSR generation helpers.

  • Name
  • Description
  • Transformation rule (multi-value): reference to CertTransformationRule
attributeTypes: (2.16.840.1.113730.3.8.21.1.12 NAME 'ipaCertTransformation' DESC 'Reference to ipaCertTransformationRule: How a data item should be mapped for a particular helper' SUP distinguishedName EQUALITY distinguishedNameMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.12 X-ORIGIN 'IPA v4.5' )
objectClasses: (2.16.840.1.113730.3.8.21.2.5 NAME 'ipaCertMappingRuleset' SUP top STRUCTURAL MUST ( cn $ description $ ipaCertTransformation ) X-ORIGIN 'IPA v4.5' )

CertTransformationRule

This object represents a particular way of transforming data, for a particular CSR generation helper.

attributeTypes: (2.16.840.1.113730.3.8.21.1.13 NAME 'ipaCertTransformationTemplate' DESC 'How to transform a specific data item' EQUALITY caseExactMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 SINGLE-VALUE X-ORIGIN 'IPA v4.5' )
attributeTypes: (2.16.840.1.113730.3.8.21.1.14 NAME 'ipaCertTransformationHelper' DESC 'Helper to which this transformation is targeted' EQUALITY caseExactMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 SINGLE-VALUE X-ORIGIN 'IPA v4.5' )
objectClasses: (2.16.840.1.113730.3.8.21.2.6 NAME 'ipaCertTransformationRule' SUP top STRUCTURAL MUST ( cn $ ipaCertTransformationTemplate $ ipaCertTransformationHelper ) X-ORIGIN 'IPA v4.5' )

Option B

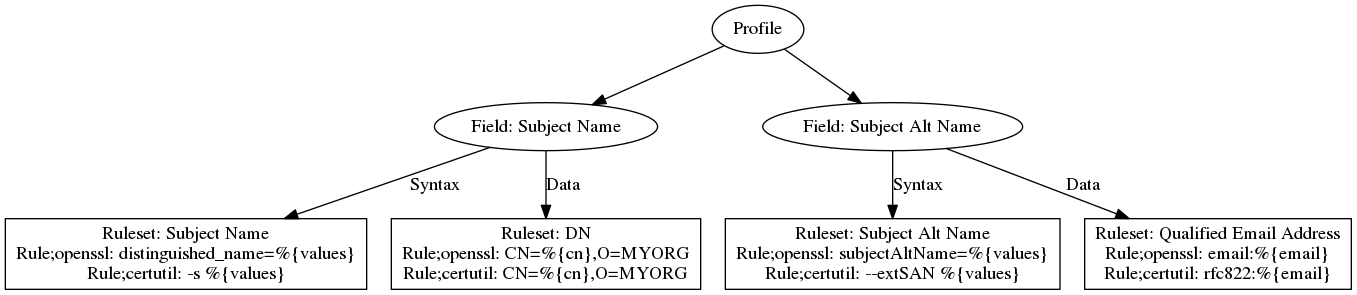

In this option, the association of rules to helpers is accomplished using LDAP attribute tagging. A CertMappingRuleset has a multi-valued attribute to store the rules, and each such attribute is tagged with the helper to which the rule belongs. CertMappingSchemaB.dot.png

CertMappingRuleset

This object represents the ways a data item might need to be formatted to achieve a particular CSR result, for all the different CSR generation helpers.

  • Name
  • Description
  • Transformation rule (multi-value): Rule for transforming data into helper syntax. Must provide the helper name as attribute tag.
attributeTypes: (2.16.840.1.113730.3.8.21.1.12 NAME 'ipaCertTransformation' DESC 'How to transform a specific item for a specific helper' EQUALITY caseExactMatch SYNTAX 1.3.6.1.4.1.1466.115.121.1.15 X-ORIGIN 'IPA v4.5' )
objectClasses: (2.16.840.1.113730.3.8.21.2.5 NAME 'ipaCertMappingRuleset' SUP top STRUCTURAL MUST ( cn $ description $ ipaCertTransformation ) X-ORIGIN 'IPA v4.5' )
