V4/Authentication Indicators

Name: V4/Authentication Indicators
Ticket: #433
Target version: 4.4.0
Author: Npmccallum
Incomplete.png Pending review
Last updated: 2016-04-25 by Alich

Overview

Users can authenticate to Kerberos in FreeIPA using many different mechanism (i.e. Password, Password+OTP, RADIUS, etc.). Each mechanism represents a different authentication strength. Similarly, Kerberos enabled services had varying degrees of security sensitive content. It would be valuable if services could specify that they require certain authentication methods. This would permit, for example, the strongest authentication methods to be used across all the services while not allowing weaker authentication methods to have access to security critical services.

This project enables authentication methods to insert tags, called Authentication Indicators, into the TGT based upon the types of authentication that are used. Service principals can then define a set of authentication indicators which are required in order to obtain a ticket for the service.

Use Cases

Strong Authentication on Selected System

User story

As an Administrator, I want to setup authentication to a critical system in my infrastructure (gateway VPN, accounting system) to only allow IdM users authenticated via strong authentication methods (2FA). I do not want to require strong authentication on other systems.

Description

A realm has two servers configured for ssh which use the following principals configured with authentication indicators:

  • host/lowsecurity.example.com []
  • host/highesecurity.example.com [otp radius]

When the administrator logs in using both his password and an OTP token, he can access both systems via ssh. However, when the administrator logs in using just a password, he can only access lowsecurity.example.com.

Design

Background

The IETF draft for Authentication Indicators is available here: https://tools.ietf.org/html/draft-jain-kitten-krb-auth-indicator-01

The MIT Kerberos project for Authentication Indicators is available here: http://k5wiki.kerberos.org/wiki/Projects/Authentication_indicator

MIT Kerberos now contains all the plumbing for Authentication Indicators as of the 1.14 release. Our changes are mostly limited to the kdb plugin and the UI/CLI.

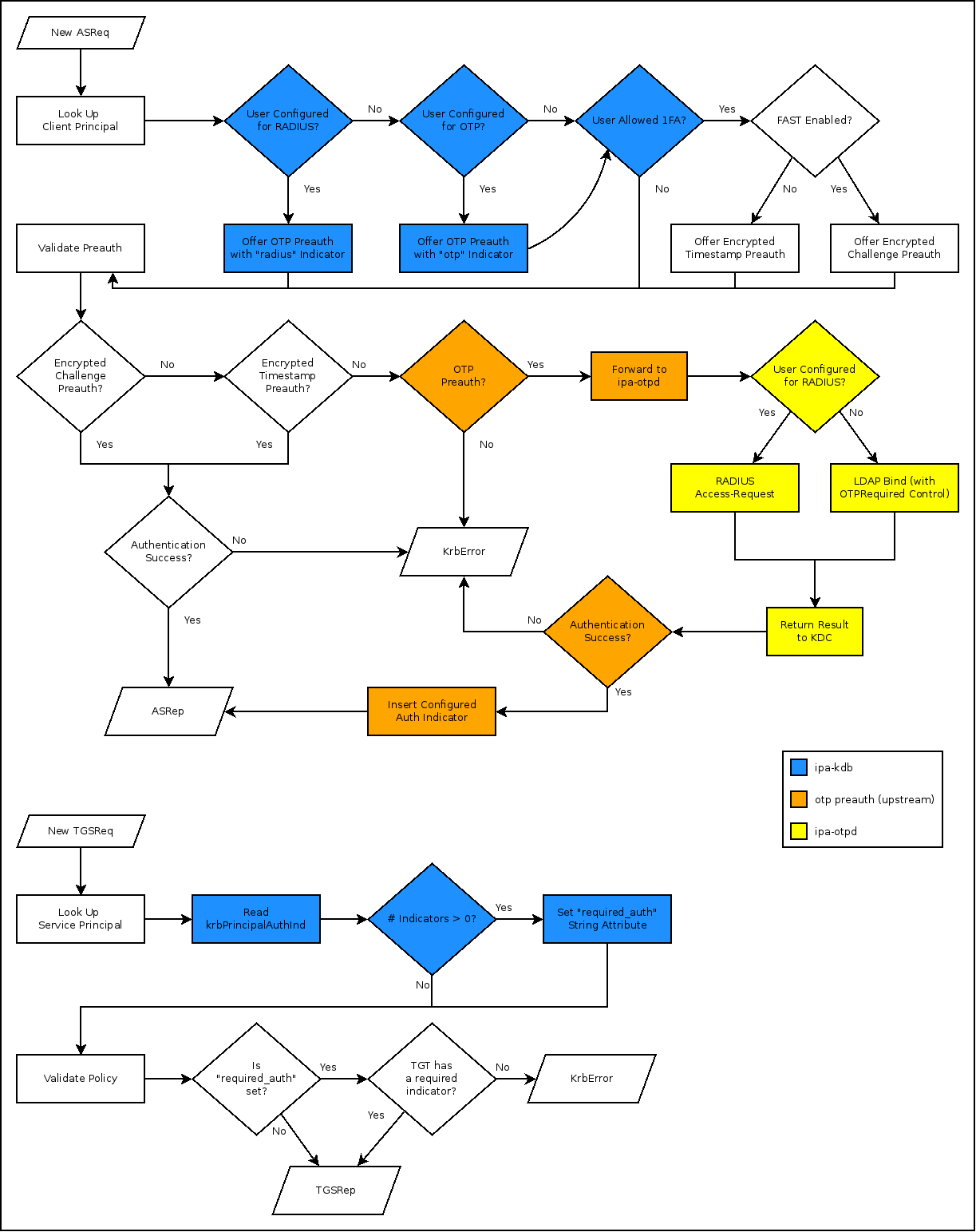

Overview


Enable Optional OTP Preauth

Server Side

Currently, if OTP is enabled for a user (even optionally), only the otp preauth mechanism is returned. Once we have authentication indicators, it is the otp preauth mechanism that will set the indicator. Thus, we have to disallow 1FA through the otp preauth module so that only 2FA authentications get a 2FA indicator.

To accomplish this, we have ipa-otpd set a critical control during its bind operation which indicates to the server that an OTP MUST be validated for authentication to succeed. If the server does not support this control, the bind will fail. If the server does support the control but is unable to validate an OTP, the bind will fail. The bind control has the following OID: TBD.

Once authentications through ipa-otpd enforce the presence of a second factor, we can enable other preauthentication mechanisms (encrypted challenge/timestamp) for 1FA.

Client Side

The kinit utility should work out of the box. Versions that did not support OTP previously failed authentication. However, with the above server change these clients now work for 1FA only. Further, clients without FAST enabled will now be able to obtain a 1FA ticket; enabling them to step up to 2FA by enabling FAST with their 1FA ticket. Finally, clients that both understand OTP and have FAST enabled will chose the first mechanism returned from the server; which is OTP. This is probably the best behavior we can expect from kinit.

SSSD will have to learn how to handle receiving both encrypted challenge and OTP when FAST is present. Currently, it should force the use of OTP. We need to make this optional.

Insert Authentication Indicators During Authentication (ASReq)

Once the above task is done, we can start inserting authentication indicators. This is a simple configuration change to the KDB plugin to return a specially formatted user string for the otp preauthentication mechanism.

Verify Authentication Indicators During Ticket Issuance (TGSReq)

During a TGS request, the KDC will load the service principal from KDB like normal. In this case, we simply need to return a tl_data string with the key as "require_auth" and the value a space separated list of authentication indicators. This will be stored in LDAP as the optional multi-valued attribute krbPrincipalAuthInd on krbPrincipal objects. This will require a patch to the upstream LDAP KDB plugin's schema to support this new attribute. It will also require a patch to FreeIPA's KDB to support this new schema.

Once the KDC has a list of acceptable indicators, it can make the proper policy evaluation.

Implementation

New Dependencies Backup and Restore
krb5 >= 1.14.0 (freeipa-server only) N/A

OTPRequired Bind Control

OID Contents
TBD None (empty)

KDB String Attributes

Principal Type Configuration Key Value
User (AS Req) RADIUS otp [{"indicators": ["radius"]}]
User (AS Req) OTP otp [{"indicators": ["otp"]}]
Service (TGS Req) N/A require_auth <space_separated_list_of_acceptable_AIs>

Feature Management

UI

Services should gain checkboxes for the required authentication indicators.

CLI

Overview of the CLI commands. Example:

Command Options
service-add --auth-ind=['otp', 'radius']
service-mod --auth_ind=['otp', 'radius']

Upgrades

Upgrades will need to learn the new schema.

Troubleshooting

TBD

How to Test

Easy to follow instructions how to test the new feature. FreeIPA user needs to be able to follow the steps and demonstrate the new features.

The chapter may be divided in sub-sections per Use Case.

Test Plan

Test scenarios that will be transformed to test cases for FreeIPA Continuous Integration during implementation or review phase. This can be also link to source in cgit with the test, if appropriate.

Authentication Indicators V4.4 test plan
